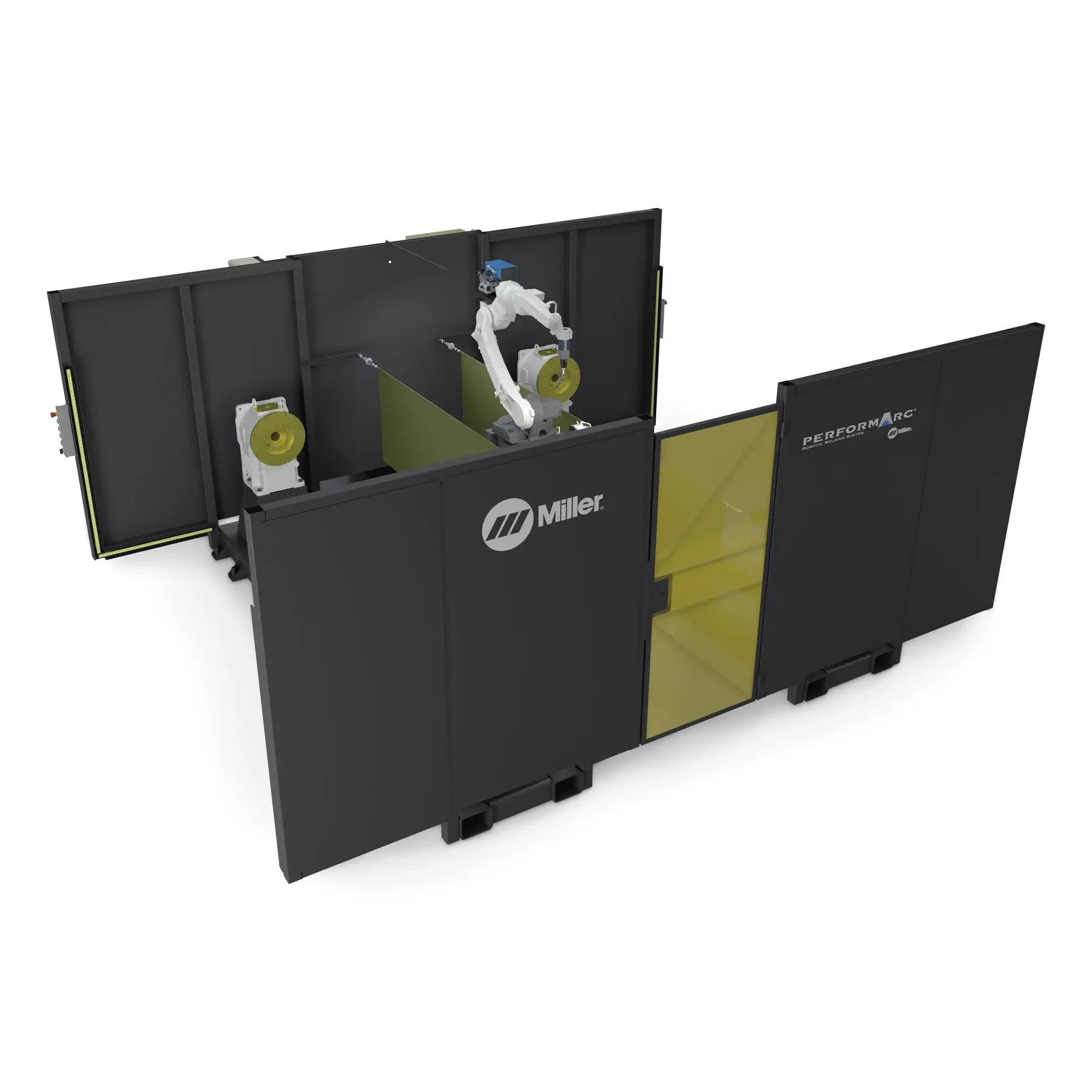

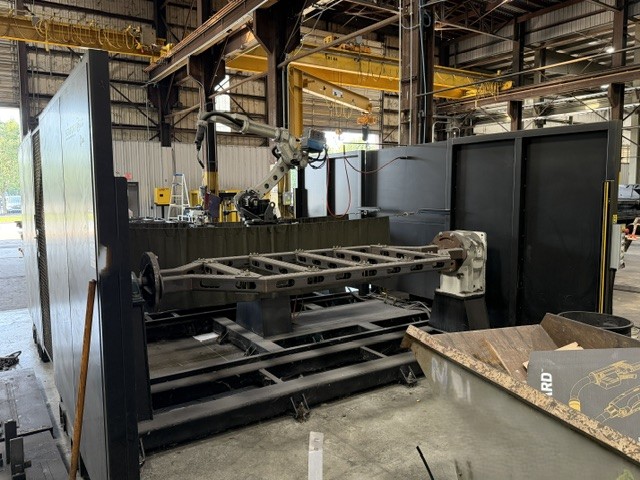

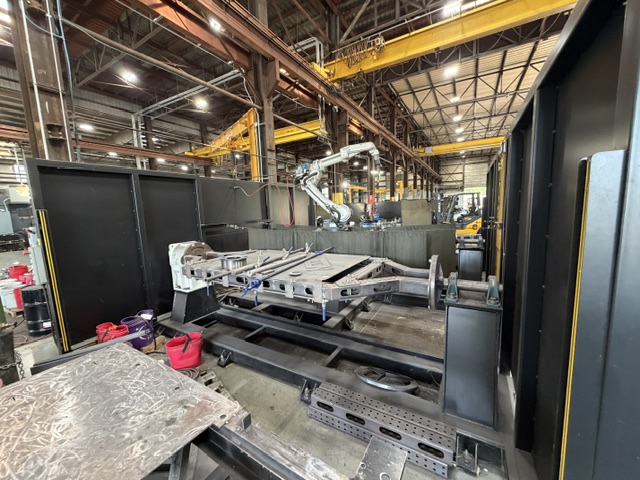

2021 Miller PerformArc PA-2200SS Robotic Welding Cell (2 Weld Cells available)

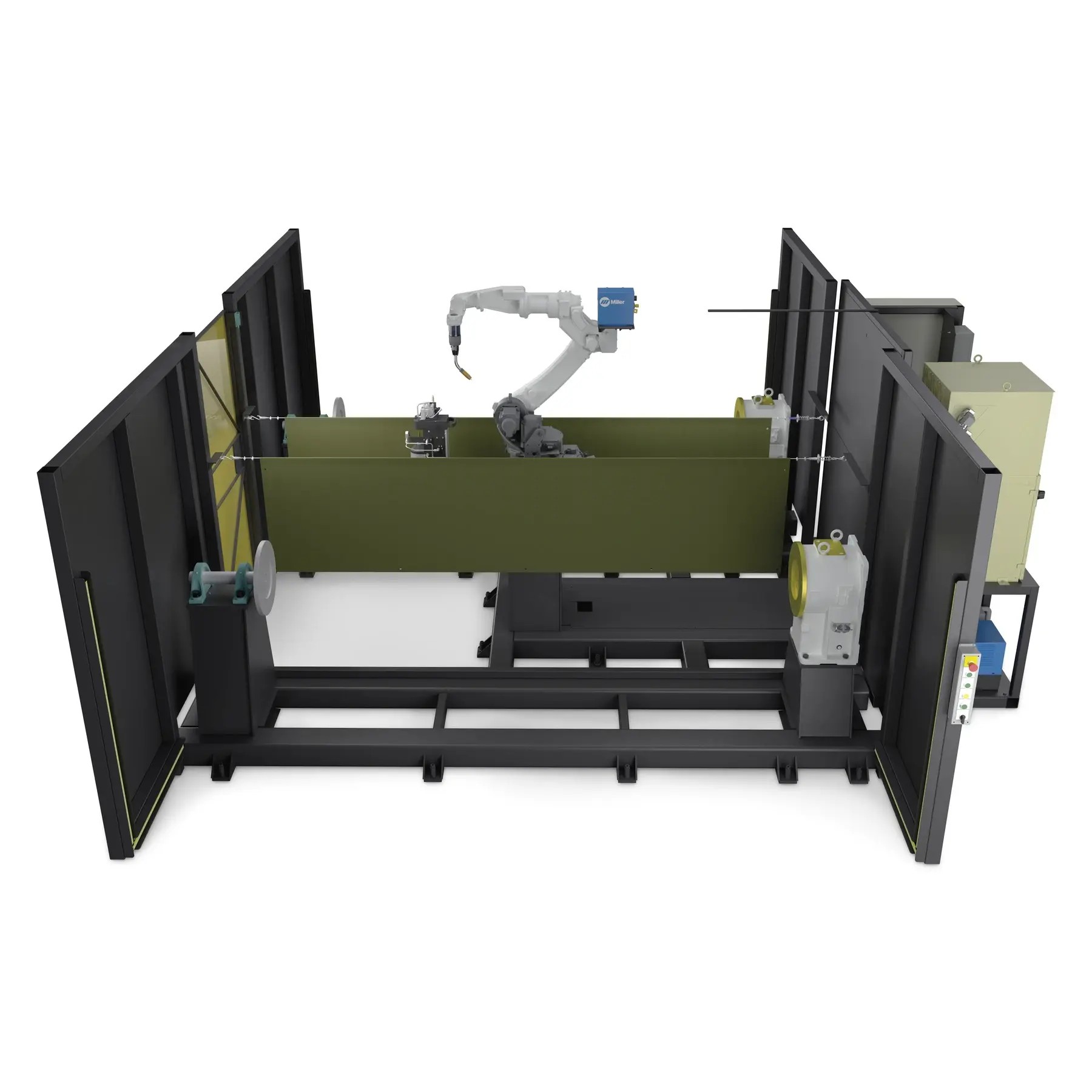

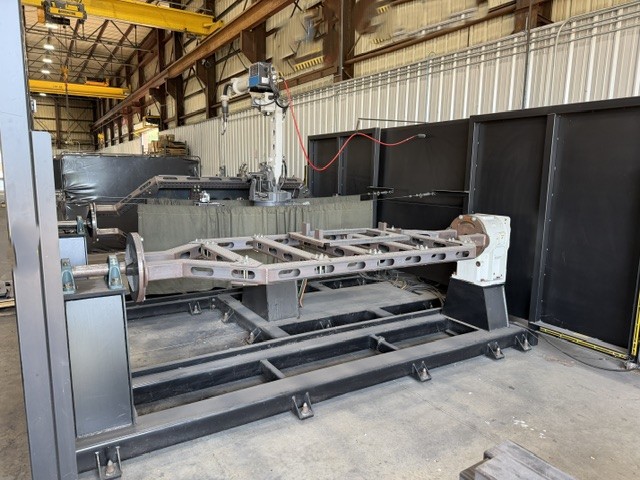

Positioners – 2 Stations, 1 Axis Per Station

Headstock to tailstock length of ~120″

Rotation diameter of ~70″

All axis fully servo driven, not limited to indexed positions

Panasonic Servo Positioners (one per station)

2200-lb capacity per side

55mm through hole on outboard positioners for utilities passage

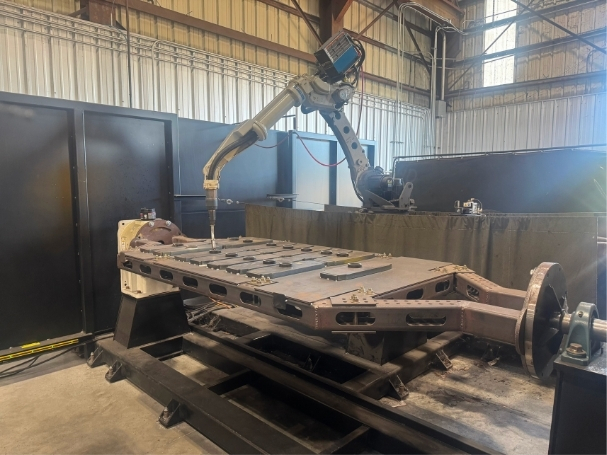

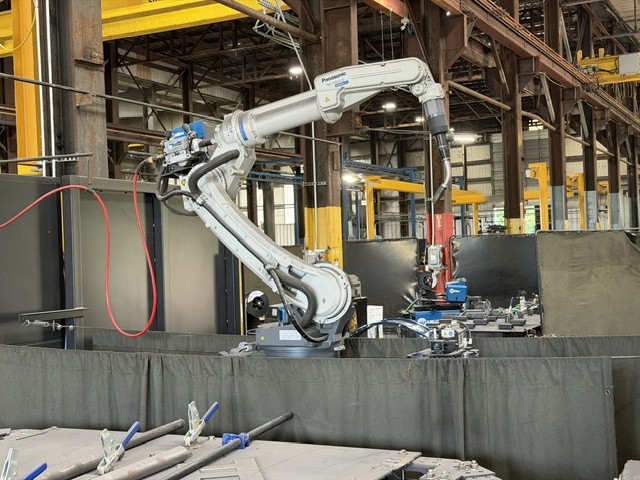

Panasonic TM-2000 Robot

6kg Payload

79.2 inch reach to Point P

Collision Detection

TM can use a thru arm torch or a conventional over the arm torch design

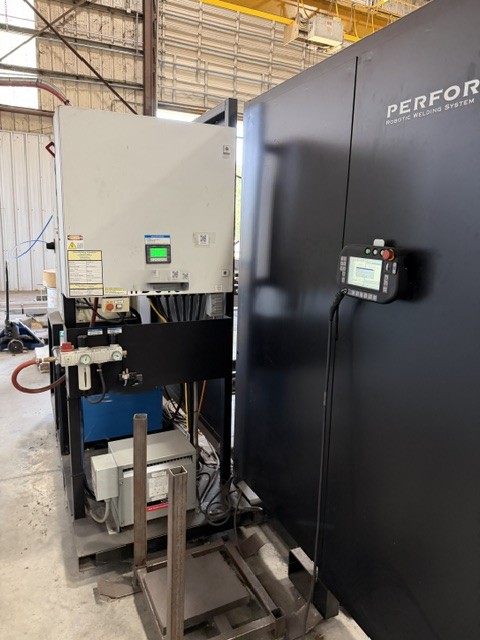

Panasonic G3 Robot Controller

Panasonic G3 Teach Pendant (Windows CE 7″ Color GUI)

40,000 Point memory, virtually unlimited expansion with SD card

Ethernet LAN connection standard

Teach Pendant with 7-inch-wide TFT color LCD, Windows CE operation system

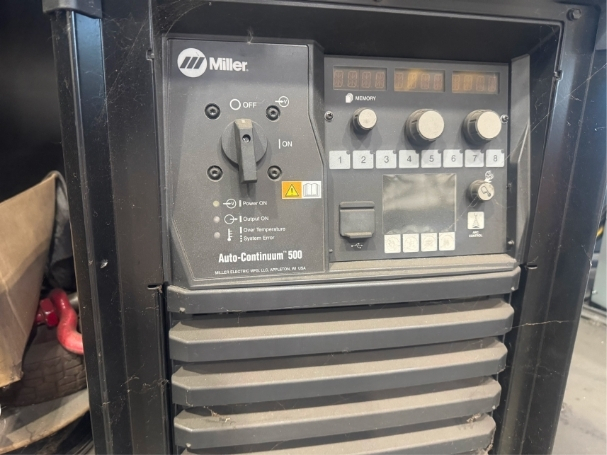

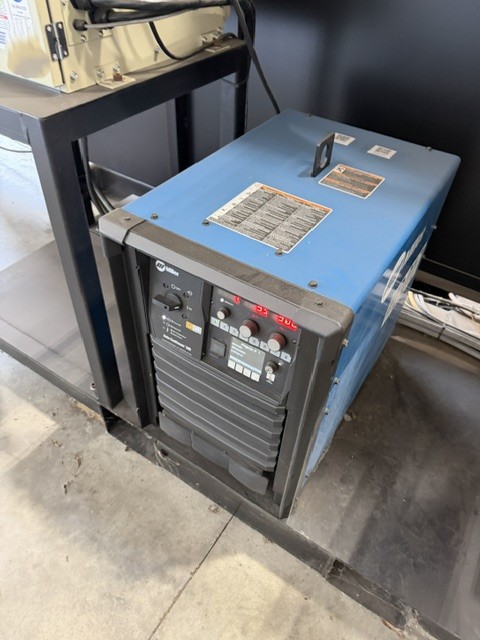

Miller Auto Continuum 500

500-Amp, 100% Duty-Cycle, Digital Welder

Inverter based Pulse Welding and CV Welding

80-Volt Touch Sensing Technology

Miller Robotic Wire Feeder

Tregaskiss Air Cooled Torch
