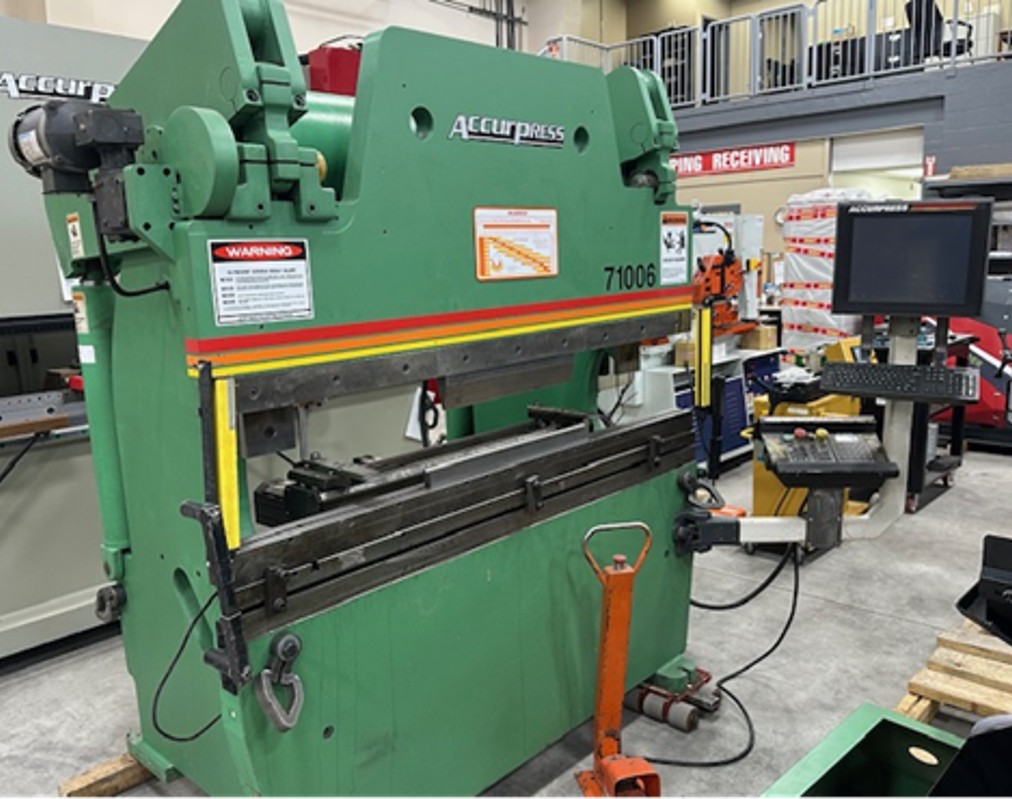

Accurpress 100 Ton Hydraulic Press Brake Model: 71006 new in 2002

Tonnage                                                                     100

Bed Length                                                                 72”

Distance between Housings                                     54”

Stroke                                                                         8”

Open Height                                                               14”

Closed Height                                                             6”

Throat                                                                         8”

Bed Width                                                                  3”

Main Motor                                                                 10 HP

Electrics                                                                      575/3/60

Approximate Dimensions                                        112” L x 48” W x 74”H

Approximate Weight                                                8,000 Lbs

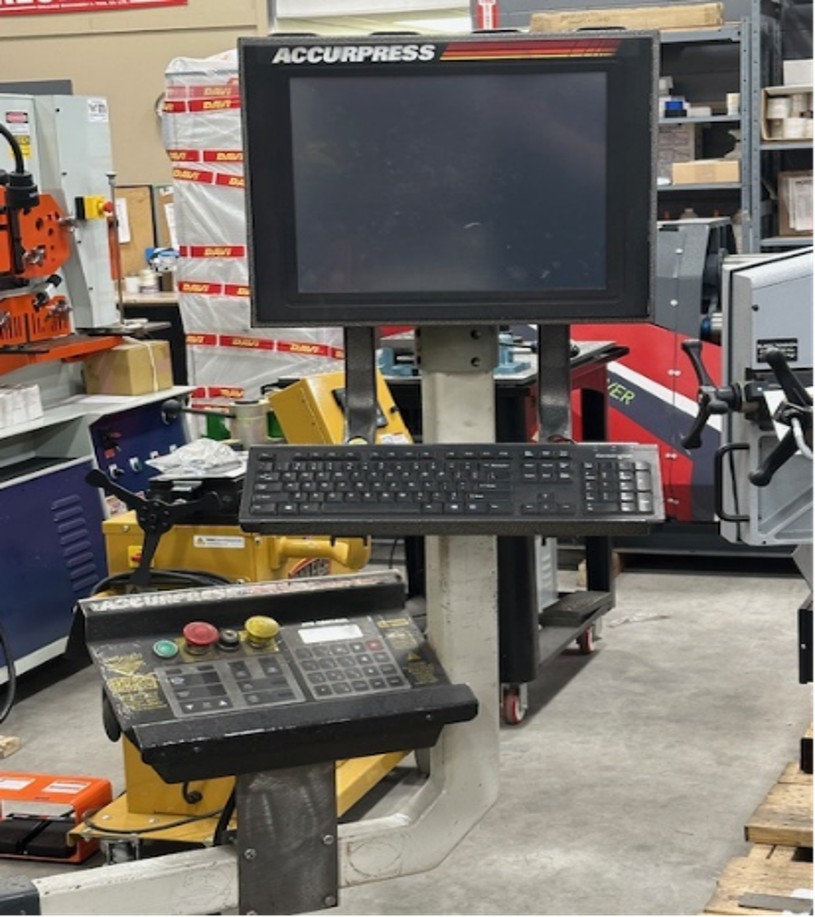

Accurpress ETS3000 Advantec Y, X axis (upgraded control)

24” CNC Backgauge

Die Rail

Sectional Ram Clamps

Flush Floor Design
