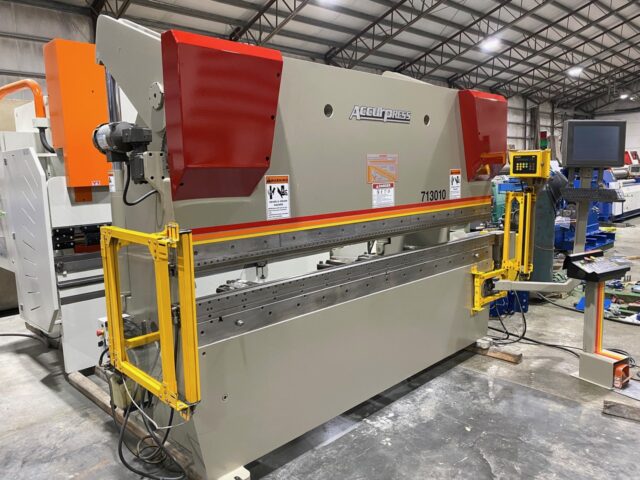

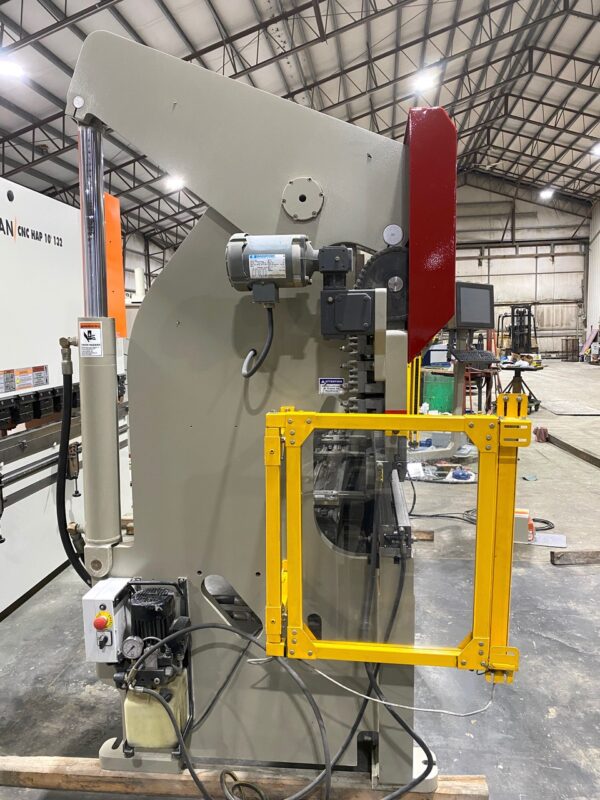

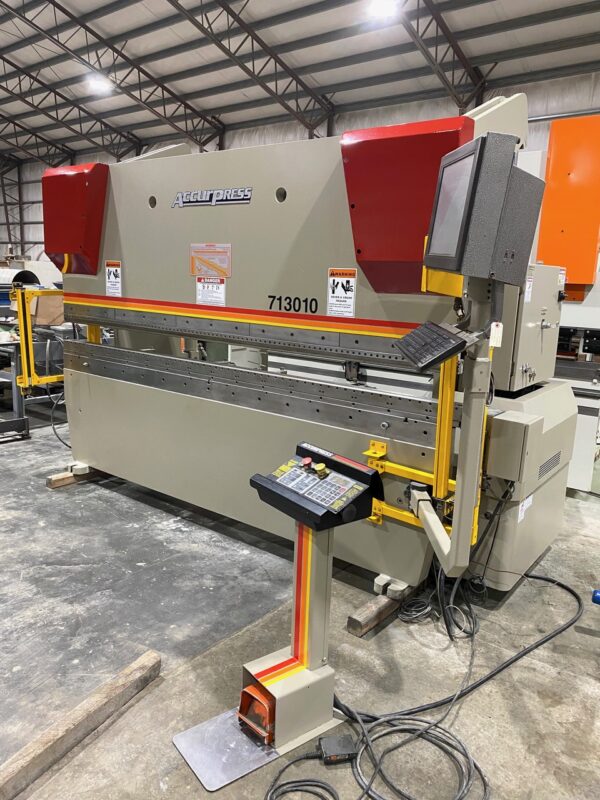

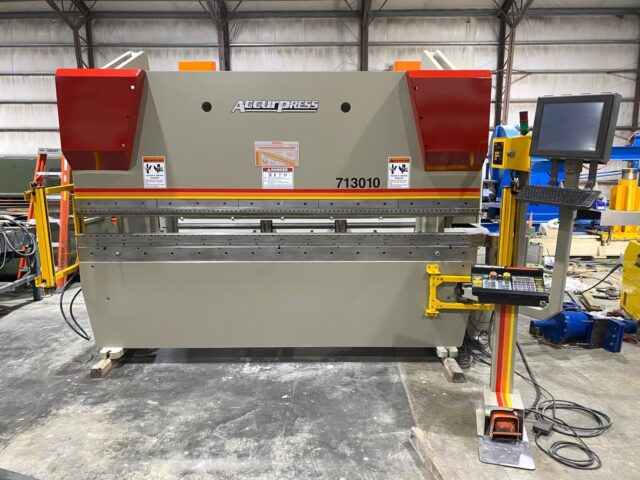

2002 Accurpress 130 Ton x 10’ CNC Hydraulic Press Brake Model: 713010

Tonnage                                                                     130

Bed Length                                                                 120”

Distance between Housings                                     100”

Stroke                                                                         8”

Open Height                                                               20”

Closed Height                                                             6”

Throat                                                                         10”

Approach Speed                                                        76 IPM

Forming Speed                                                          28 IPM

Return Speed                                                             160 IPM

Main Motor                                                                 20 HP

Electrical Requirement                                             230/3/60

Approximate Dimensions                                        144” L x 54” W x 96”H

Approximate Weight                                                15,000 Lbs

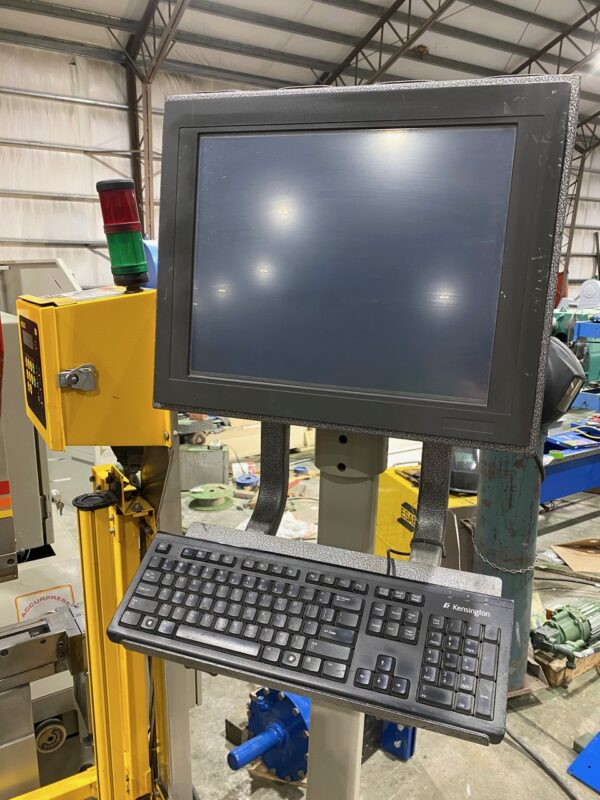

Accurpress ETS3000 backgauge control (X/R axis)

Wila powered crowning system

Wila upper clamping

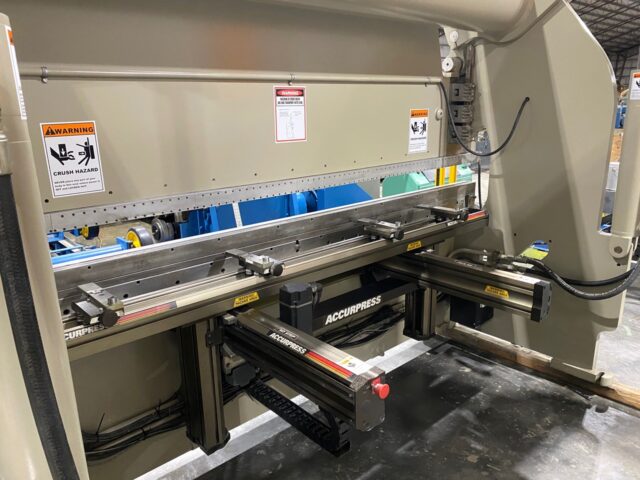

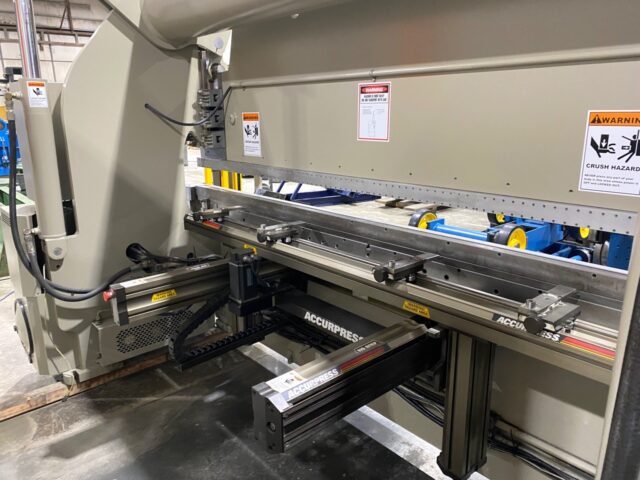

Accupress premium backgauge

Additional 6” open height

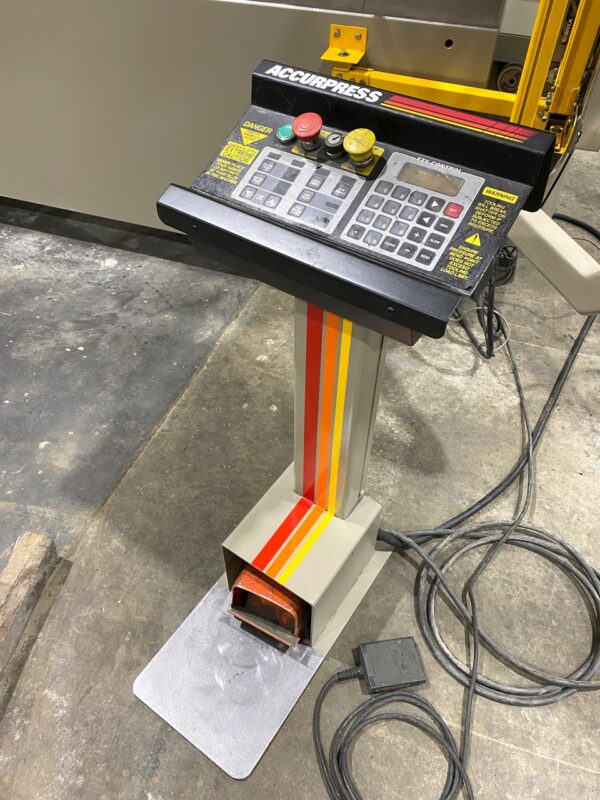

Accurpress ETS100 machine control stand with keypad and foot pedal control

Light Curtains

Flush Floor Mounted
