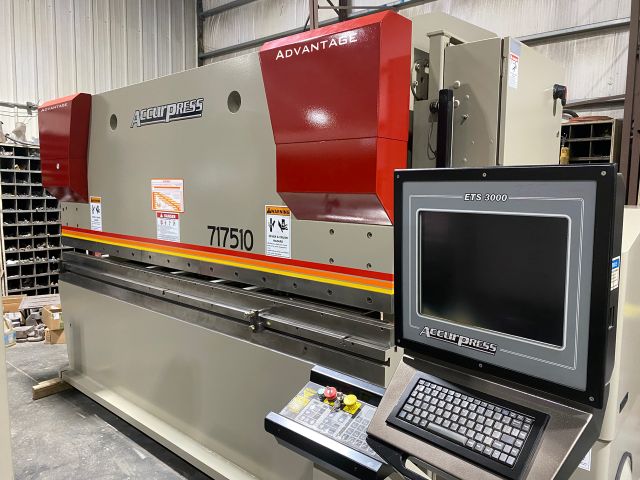

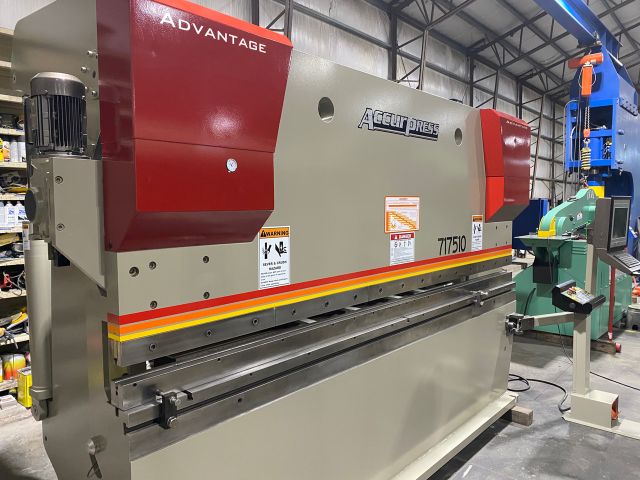

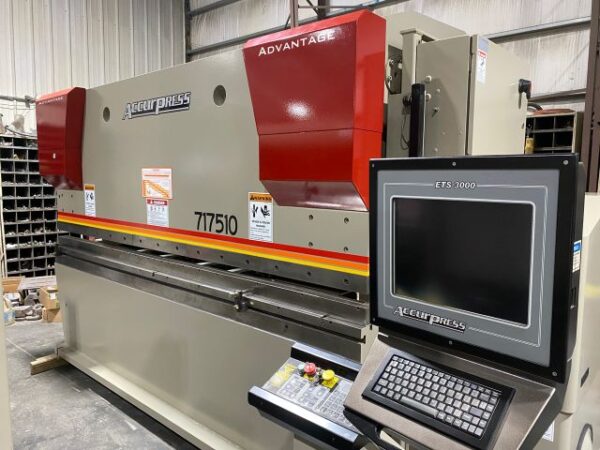

Accurpress Advantage 175 Ton CNC Hydraulic Press Brake

2002 Accurpress Advantage 175 Ton CNC Hydraulic Press Brake Model: 717510

Tonnage                                                                     175

Bed Length                                                                 120”

Distance between Housings                                     104”

Stroke                                                                         8”

Open Height                                                               14”

Closed Height                                                             6”

Throat                                                                         10”

Approach Speed                                                        90 IPM

Fast Approach                                                           17 IPM

Fast Return                                                                180 IPM

Main Motor                                                                 20 HP

Electrical Requirement                                             230/3/60 52/26 amps

Approximate Dimensions                                        158” L x 66” W x 94”H

Approximate Weight                                                24,000 Lbs

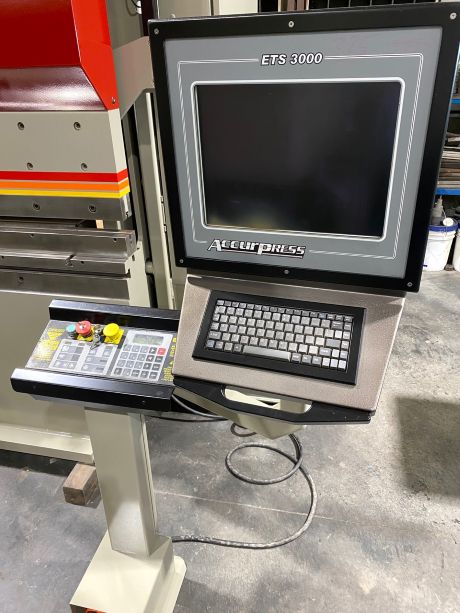

Accurpress ETS3000 CNC Pendant Control (X,Y,R axis)

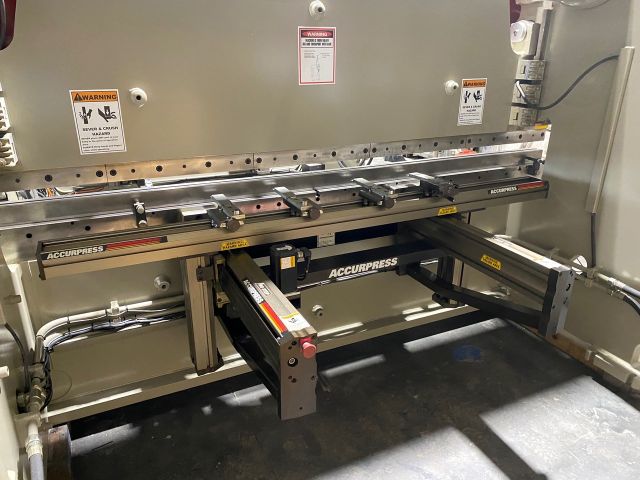

Accurpress Premium backgauge with 4 gauge fingers

Pedestal Control with footswitch

Flush Floor Mounted
