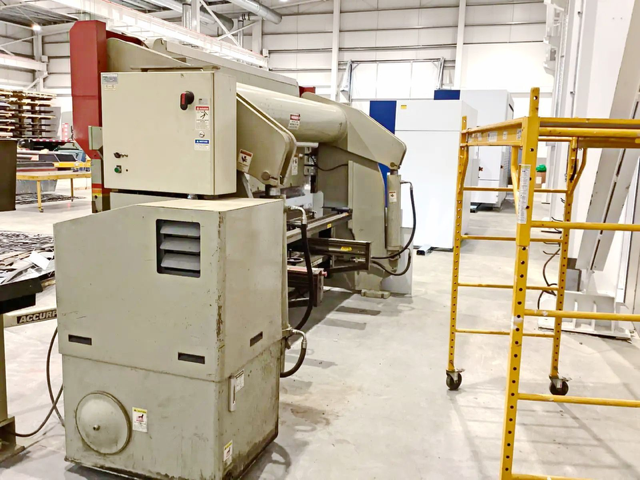

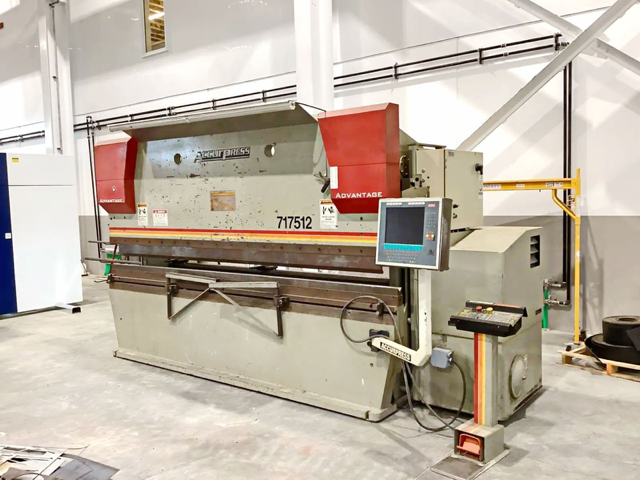

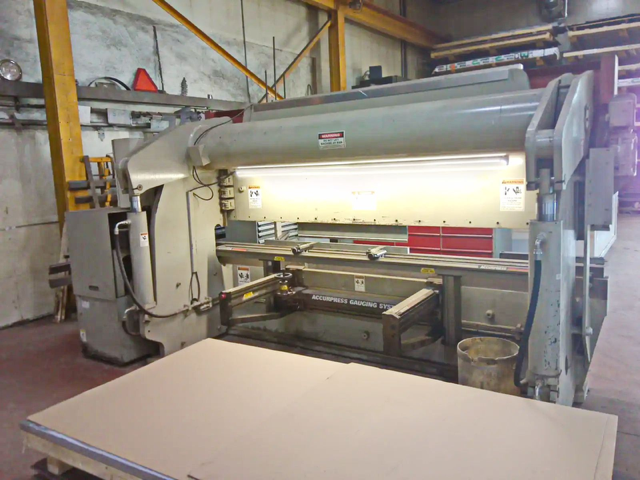

2012 Accurpress Advantage 175 Ton CNC Hydraulic Press Brake Model: 717512

Standard Specifications:

Tonnage                                                                     175

Bed Length                                                                 144”

Distance between Housings                                     120”

Stroke                                                                         8”

Open Height                                                               14”

Closed Height                                                             6”

Throat                                                                         10”

Approach Speed                                                        90 IPM

Fast Approach                                                           17 IPM

Fast Return                                                                180 IPM

Main Motor                                                                 20 HP

Electrical Requirement                                             230/3/60

Approximate Dimensions                                        178” L x 66” W x 94”H

Approximate Weight                                                24,000 Lbs

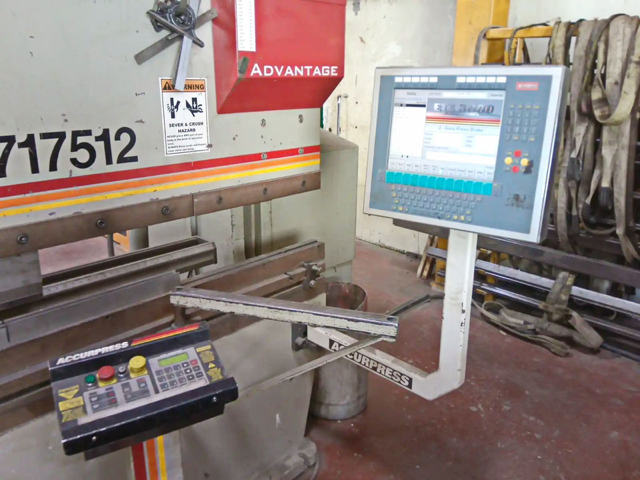

Accurpress ETS3000 CNC Pendant Control (X,Y axis)

Accurpress backgauge with manual R

ETS-200 Pedestal Control with footswitch

Flush Floor Mounted
