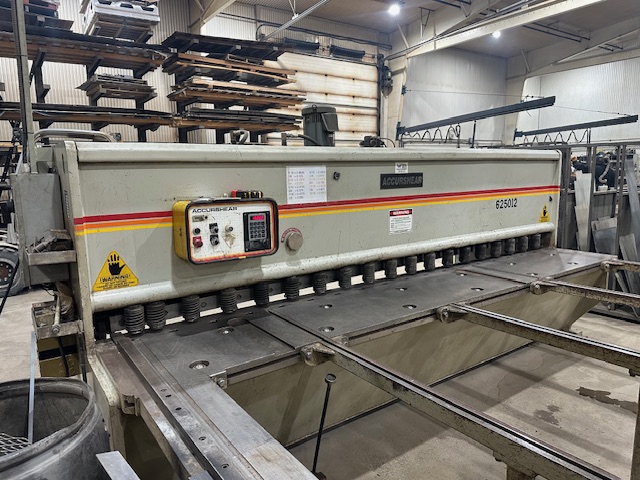

Accurshear Hydraulic Shear 12′ x 1/4″ Model 625012

Capacity                                             12′ x 1/4″

Knife Size                                                       1″ x 3″ x 148″

Rake Angle                                         1/4″ per foot (1°)

Shear Table Height                            32”

Strokes per Minute, Full                   20

Strokes per Minute, Short                46

High Speed, Full Stroke                    32

High Speed, Short Stroke                 68

Number of Hold Downs                     19

Hold Down Tonnage                          19

Motor                                                  20 HP

Electrics                                             575/3/60

Approx. Dimensions                          172”L x 88”W x 84”H

Approx. Weight                                  21,000 lbs

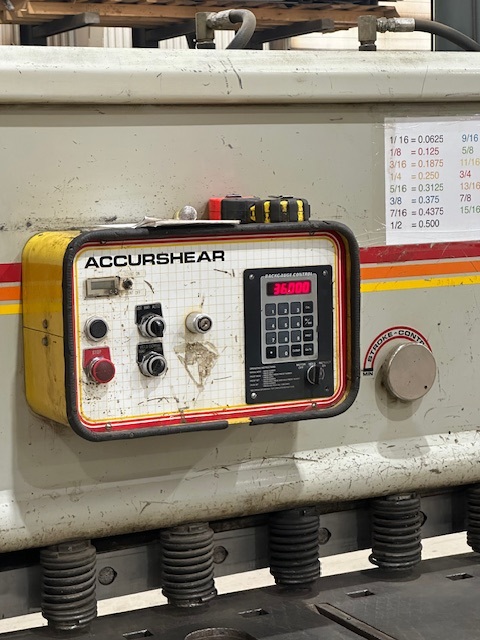

36″ Accurshear Programmable Back Gauge

8′ Squaring Arm

Manual Blade Gap

2) 4′ Front Sheet Supports

Foot Pedal
