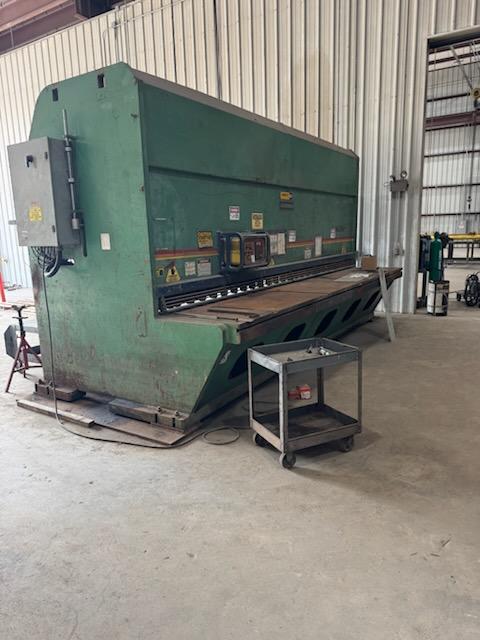

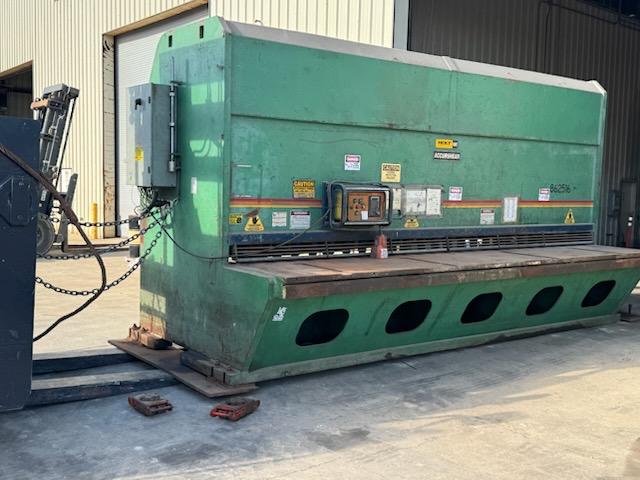

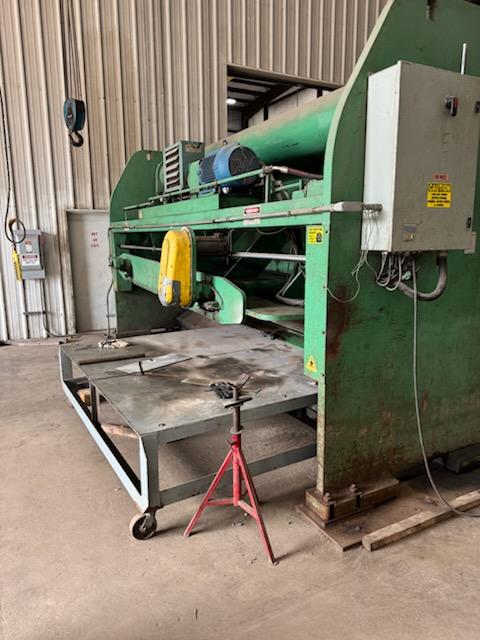

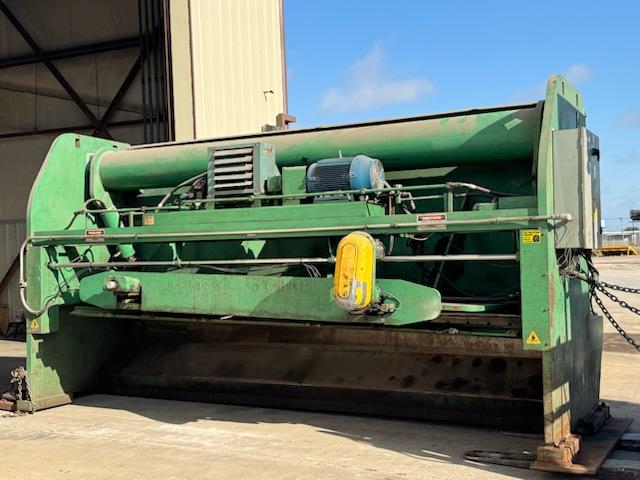

1996 ACCURSHEAR Model 862520 16′ x 5/8” Power Squaring Shear

Overall Shearing Length: 16′

Rated Mild Steel Capacity: 5/8”

Front Operated Power Back Gauge Range: 1” to 48”

Knife Size: 1-1/8” x 5” x 196”

Number of Holddowns: 26

Holddown Tonnage: 52

Cycles per Minute: Full Stroke: 6; Short Stroke: 25

Motor: 50 H.P.

Overall Dimensions: 224” x 120” x 108” High

Flush Floor Design

Machine Weight: 70,000 lbs.

4-Edge Blades 4′ Squaring Arm

4′ Squaring Arm 3-Position Footswitch Control

Jog, Manual, Auto Cycles Adjustable Stroke Length

Hand Slots in Table T-Slot in Front of Table

Power Blade Gap Adjust Oil Cooler

Front-Operated Powered Swing Away Back Gauge
