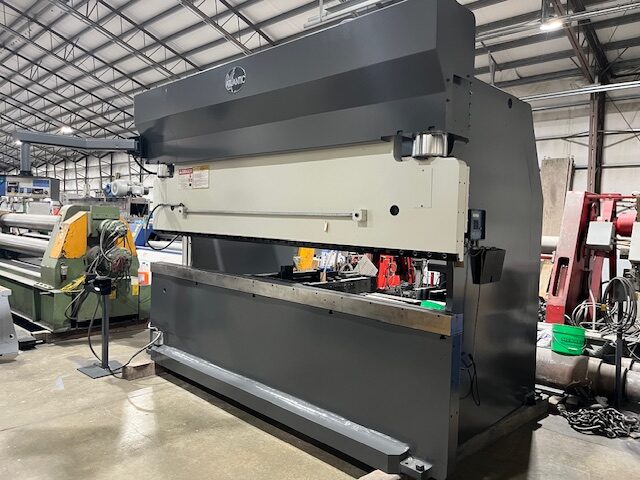

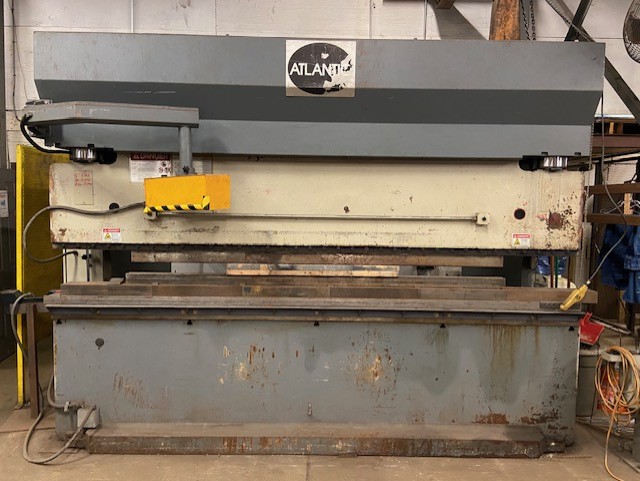

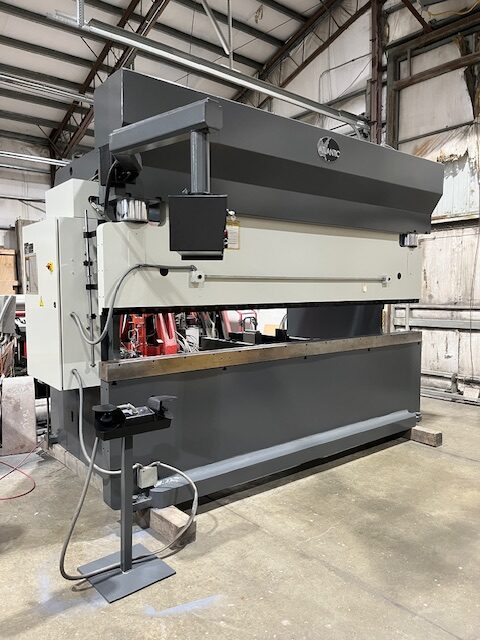

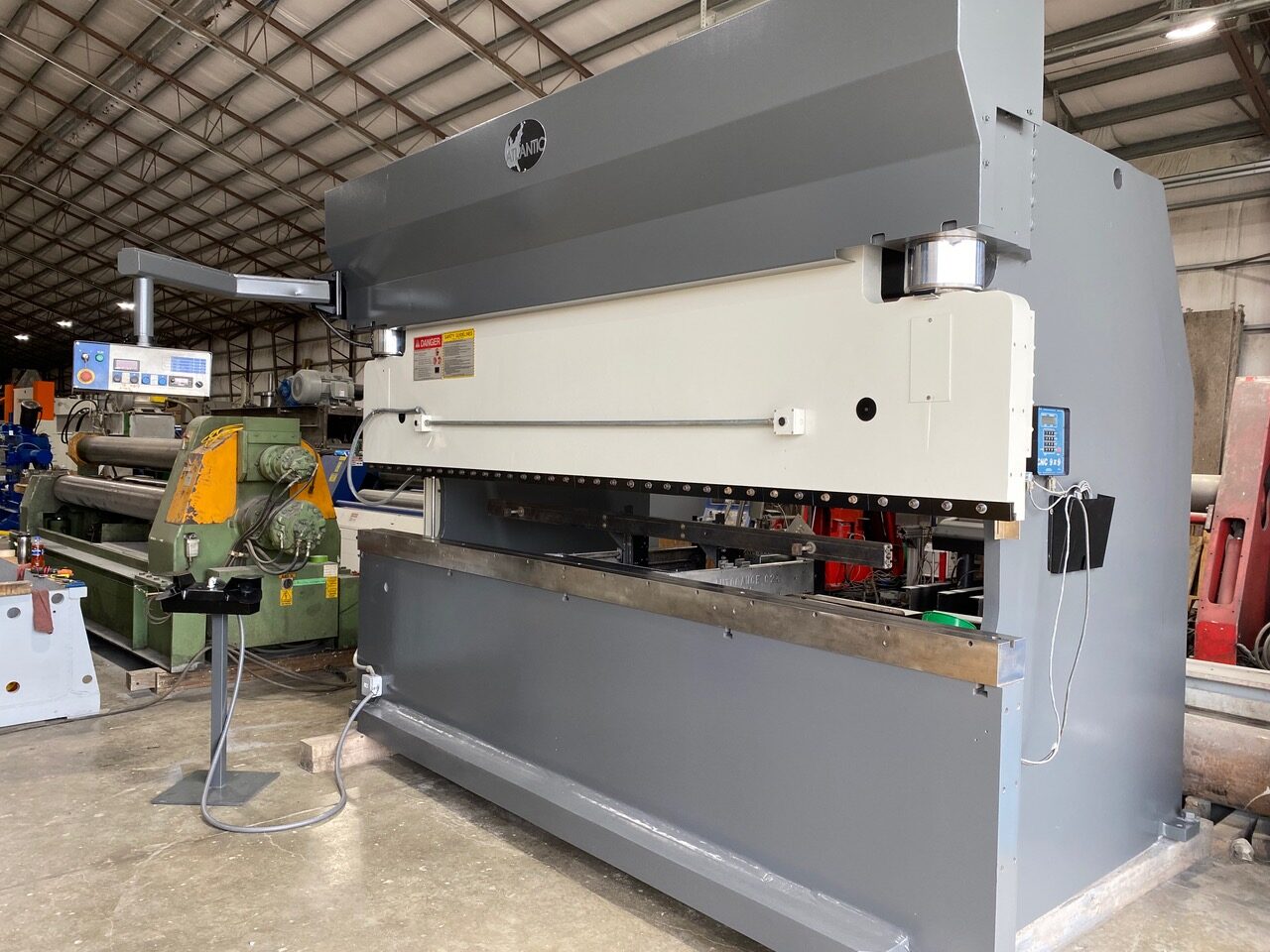

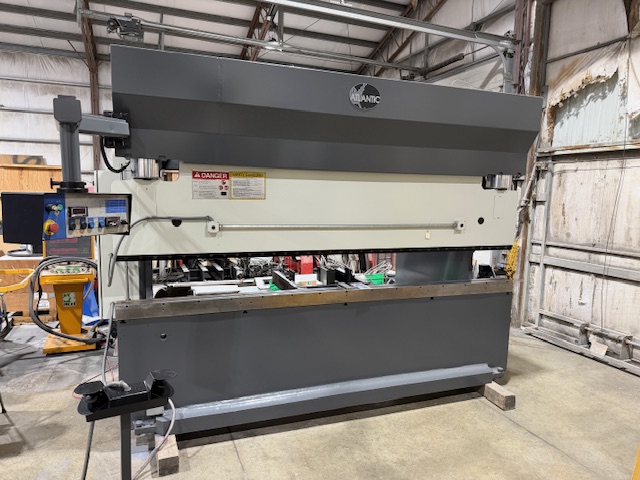

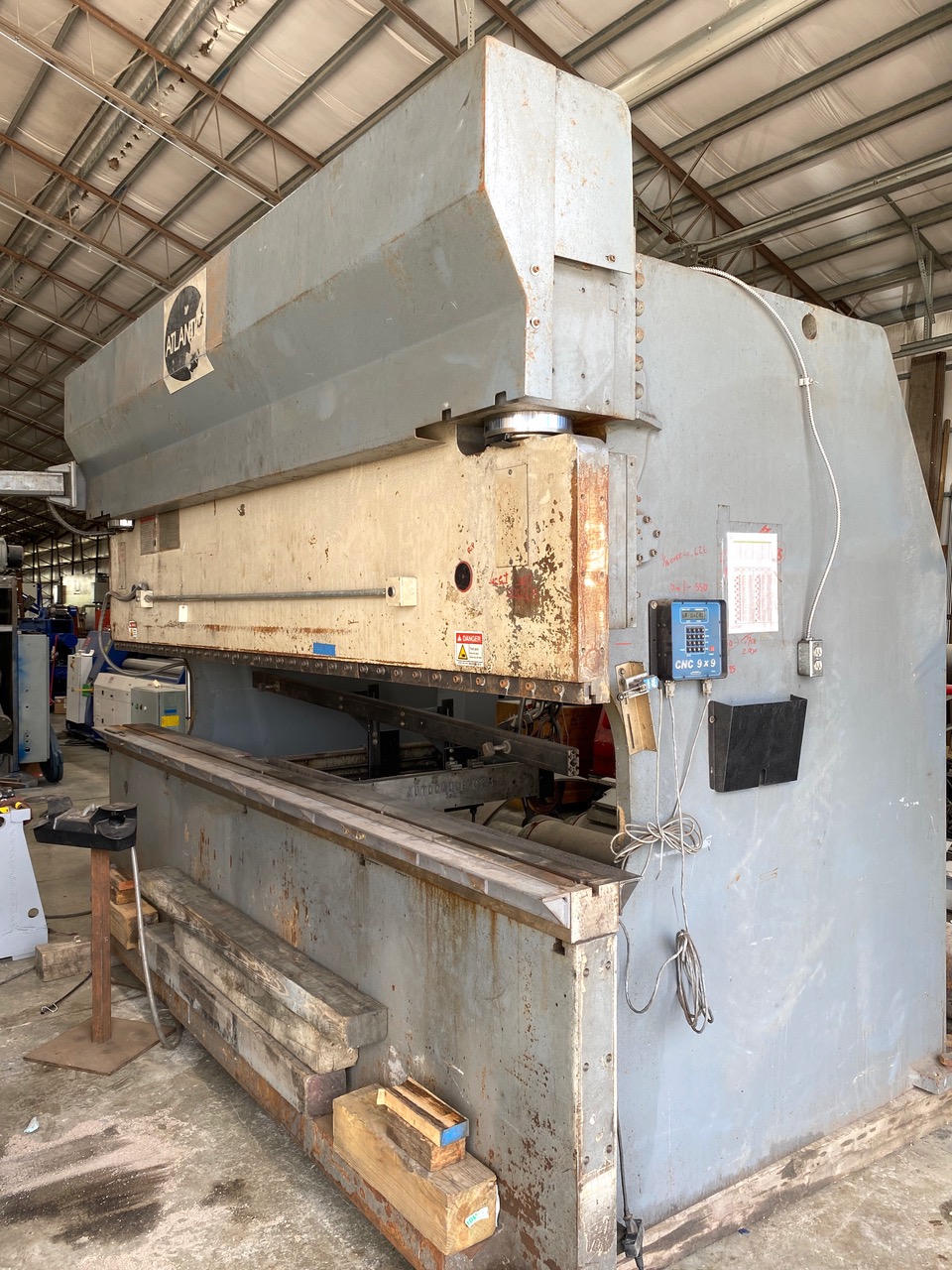

2011 275 ton x 12′ Atlantic HDE 275-12 Hydraulic CNC Press Brake

Tonnage 275

Overall length of bed and ram 144″

Distance between housings 124″

Capacity, mild steel 12’ x 5/16″, 6’ x 3/4″

Capacity, stainless steel 12′ x 1/4″

Capacity, aluminum 12′ x 3/4″

Throat depth 11.8″

Stroke length 7.8″

Fast approach speed 189 IPM

Press speed 21 IPM

Fast return speed 232 IPM

Hydraulic oil reservoir capacity approx. 100 gallons

Motor 25 HP, 460 volt

Approximate dimensions 12′ 8″ x 6′-7″ x 9′-5″ High

Approximate weight 36,300 lbs
