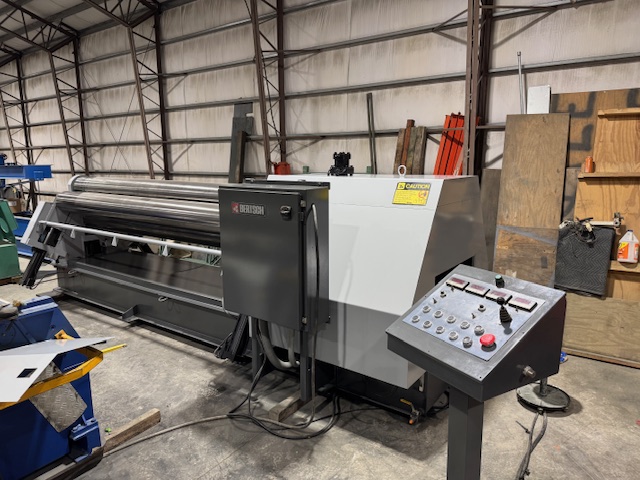

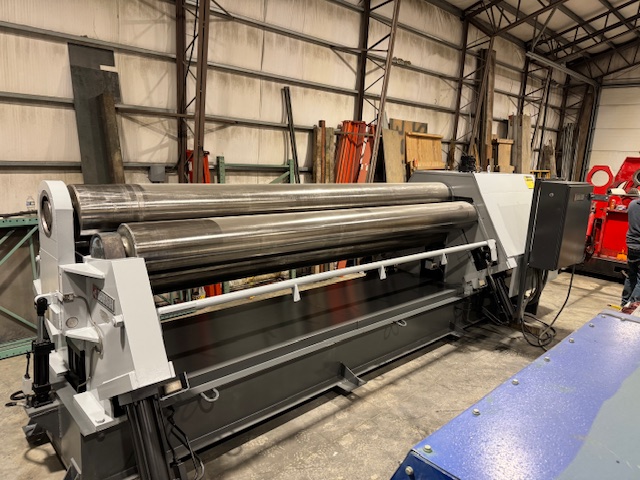

1998 Bertsch 4-Roll Double Pinch Hydraulic Plate Rolls Model 50-12

Specifications

Maximum capacity at 12′ length (boiler duty) – 1/2″ to 19″ Ø minimum

Maximum capacity at 6.25′ length (boiler duty) – 2″ to 26.6″ Ø minimum

Maximum capacity at 12′ length (pipe duty) – 1/8″ to 16.4″ Ø minimum

Maximum capacity at 64.25′ length (pipe duty) – 1.1875″ to 16.9″ Ø minimum

Number of rolls – 4

Roll length – 146”

Top & bottom roll diameter – 13”

Side roll diameter – 12”

Side roll adjustment – approx. 12″

Motor – 20 HP, 1755 RPM

Electrics:  230/460V/3/60   Amps – 46/23

Approx dimensions – 230″ LR x 88″ FB x 84″ High

Approx weight – 31,000 lbs

Power Driven Upper and Lower Roll

Operator Control Console on Wheels

Power Drop End
