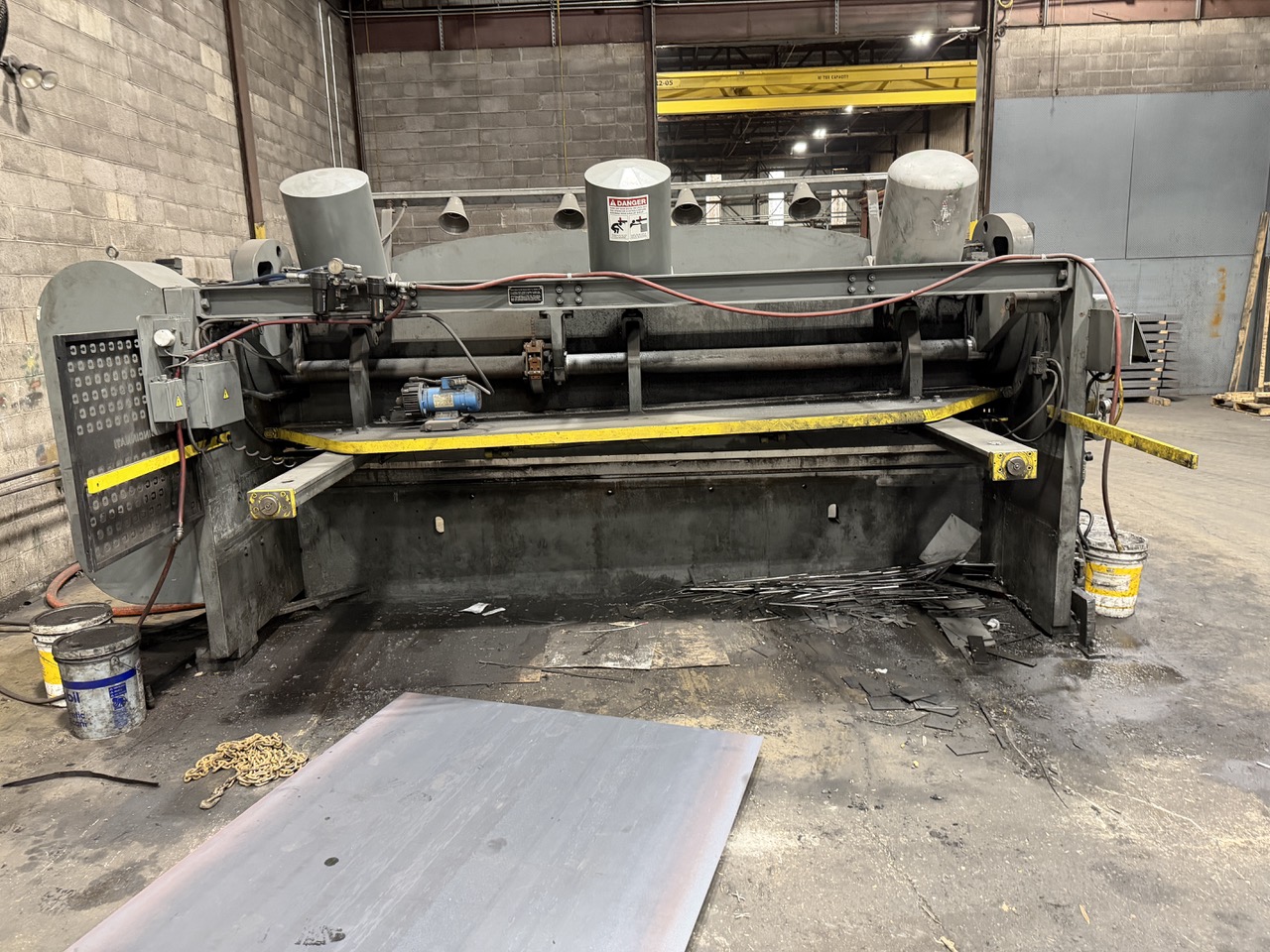

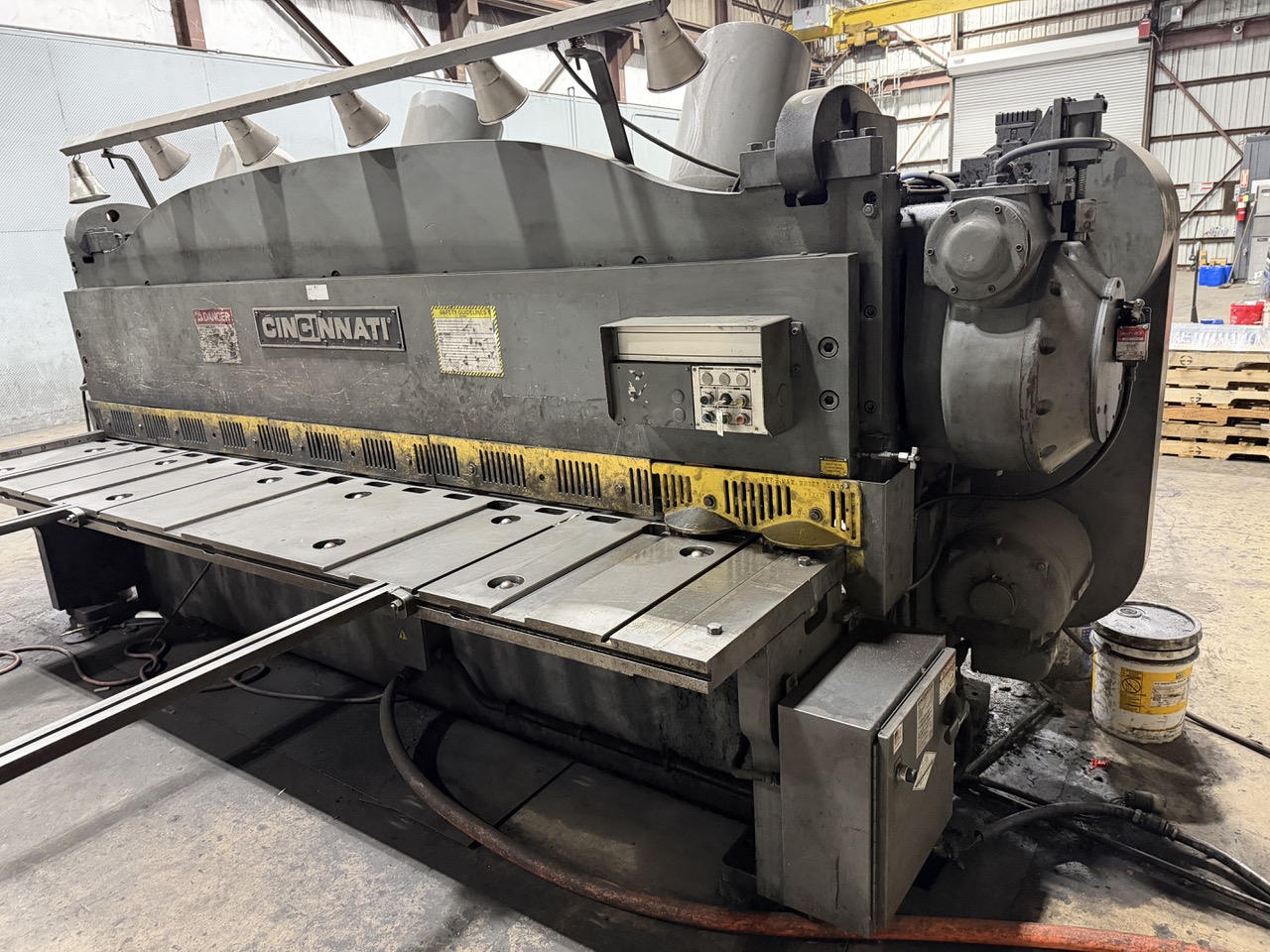

2019 Cincinnati 12′ x 3/8″ Mechanical Power Squaring Shear Model 2512G

Shearing Capacity                                                     12’ x 3/8”

Blade Length                                                              148”

Distance Between Frame                                         147”

Speed at Full Stroke                                                 50 SPM

Rake Angle                                                                9/32” per foot

Number of Hold Downs                                            13

Distance under Hold Down                                      11/16”

Gap Depth                                                                  18”

Table Height                                                               32”

Main Motor                                                                20 HP  230/460/3/60

RPM 1675  Amps 52 / 26

Approximate Dimensions                                         188” L x 82” W x 86” H

Approximate Weight                                                 33,000 Lbs

Pit Required (Approximate)                                     12” Deep x 4” W x 11’ L

36″ power operated back gauge

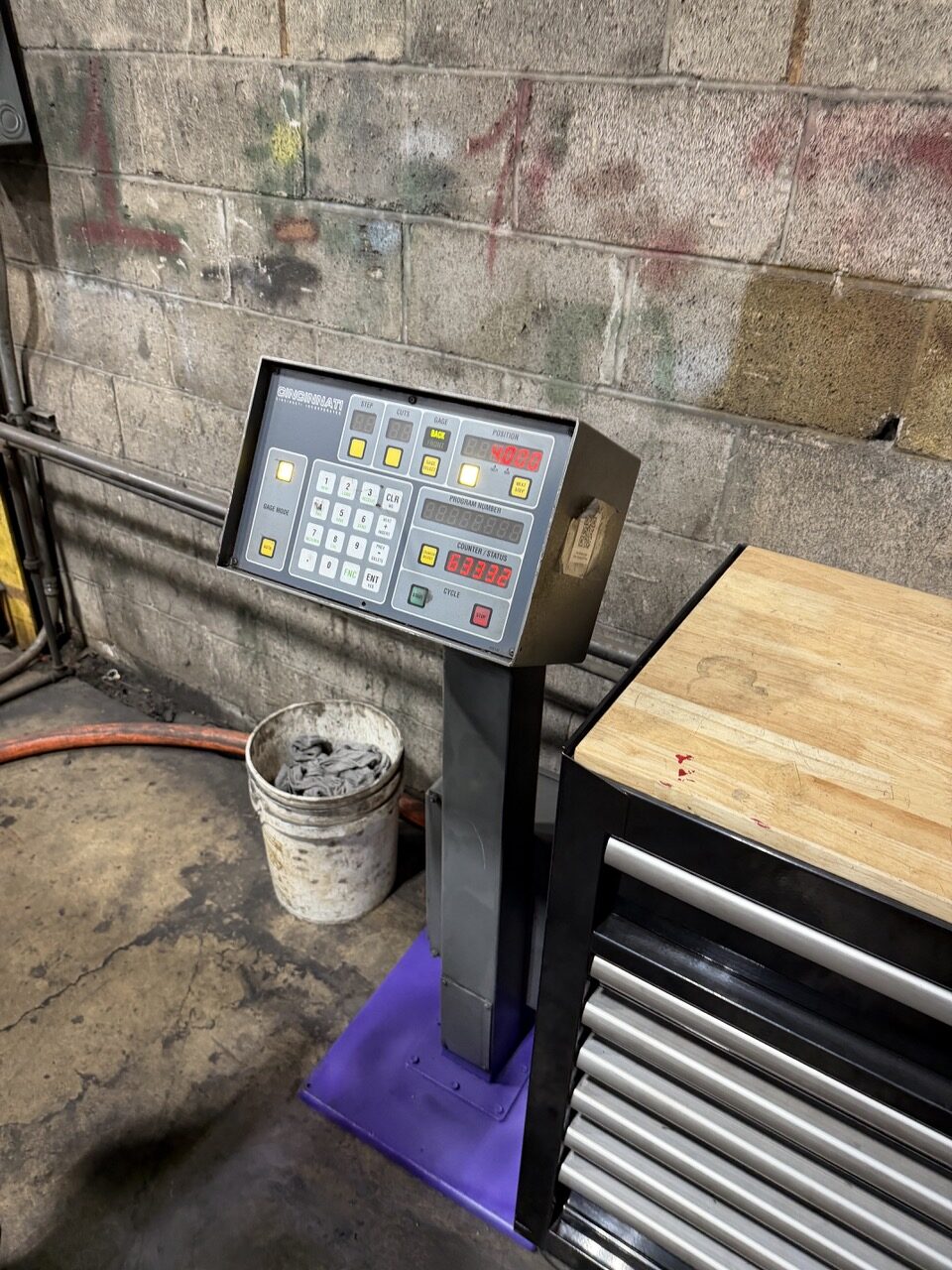

Operator control stand

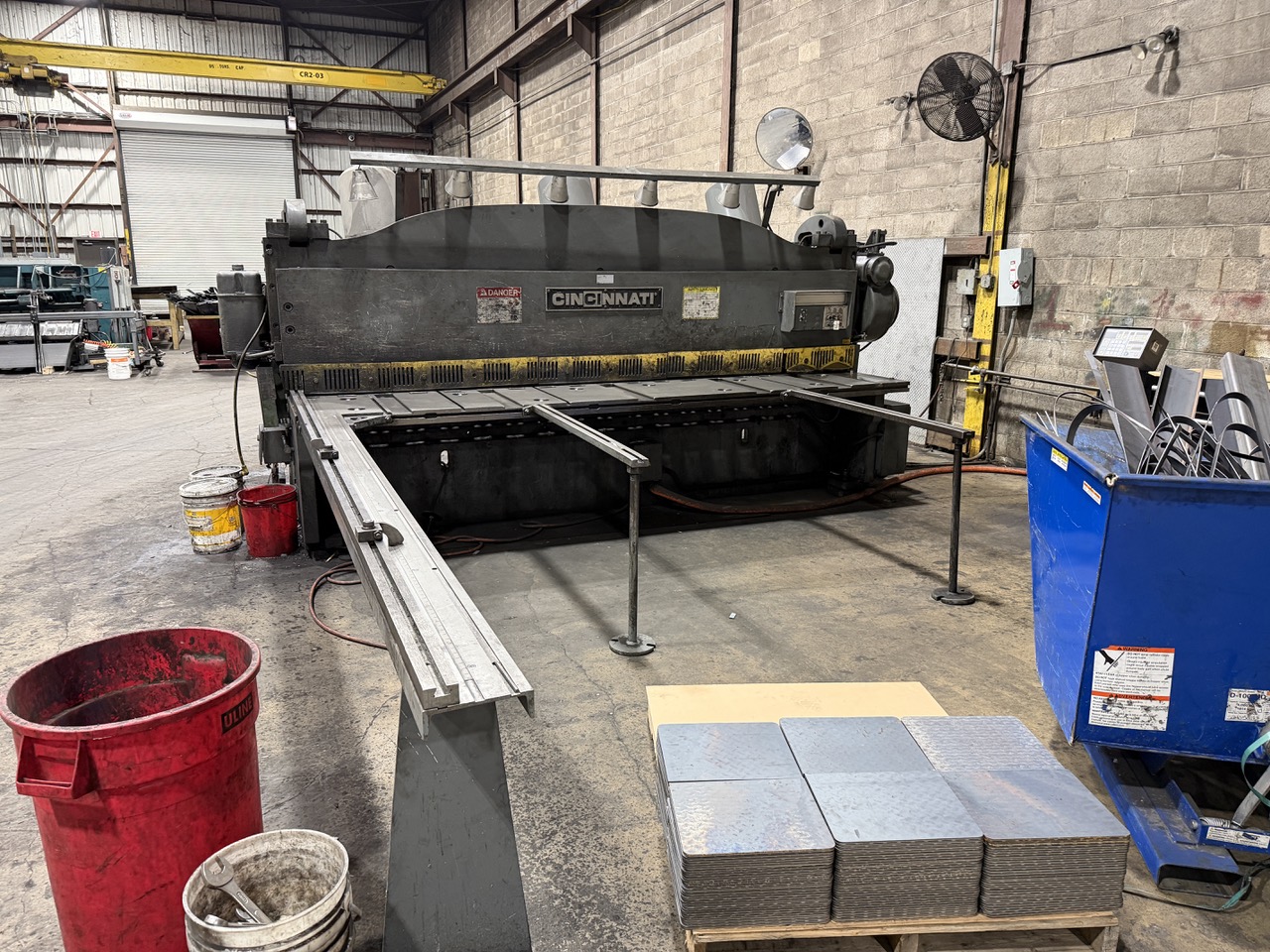

13′ squaring arm

Foot pedal control

Ball transfers in table

Finger guard
