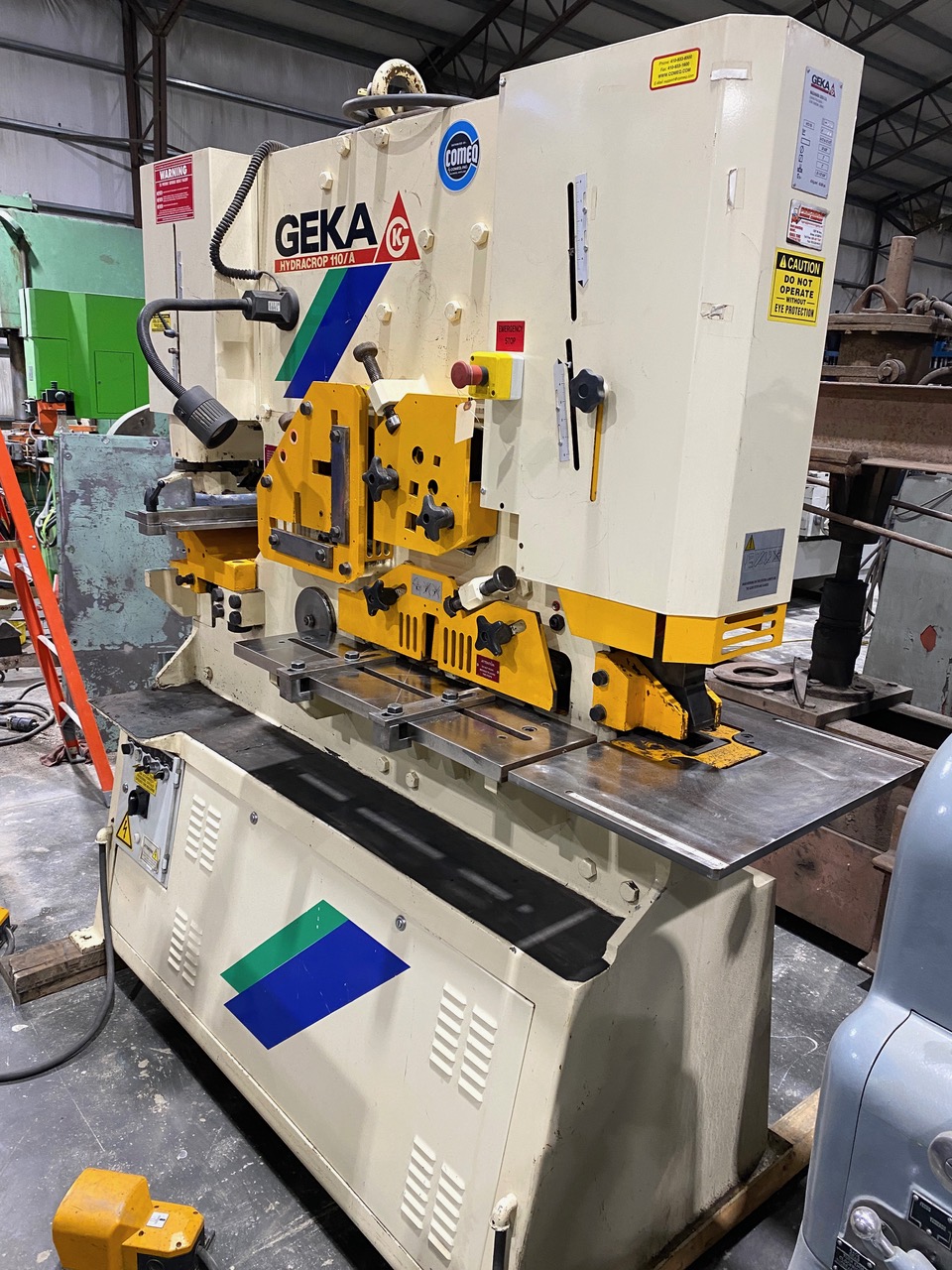

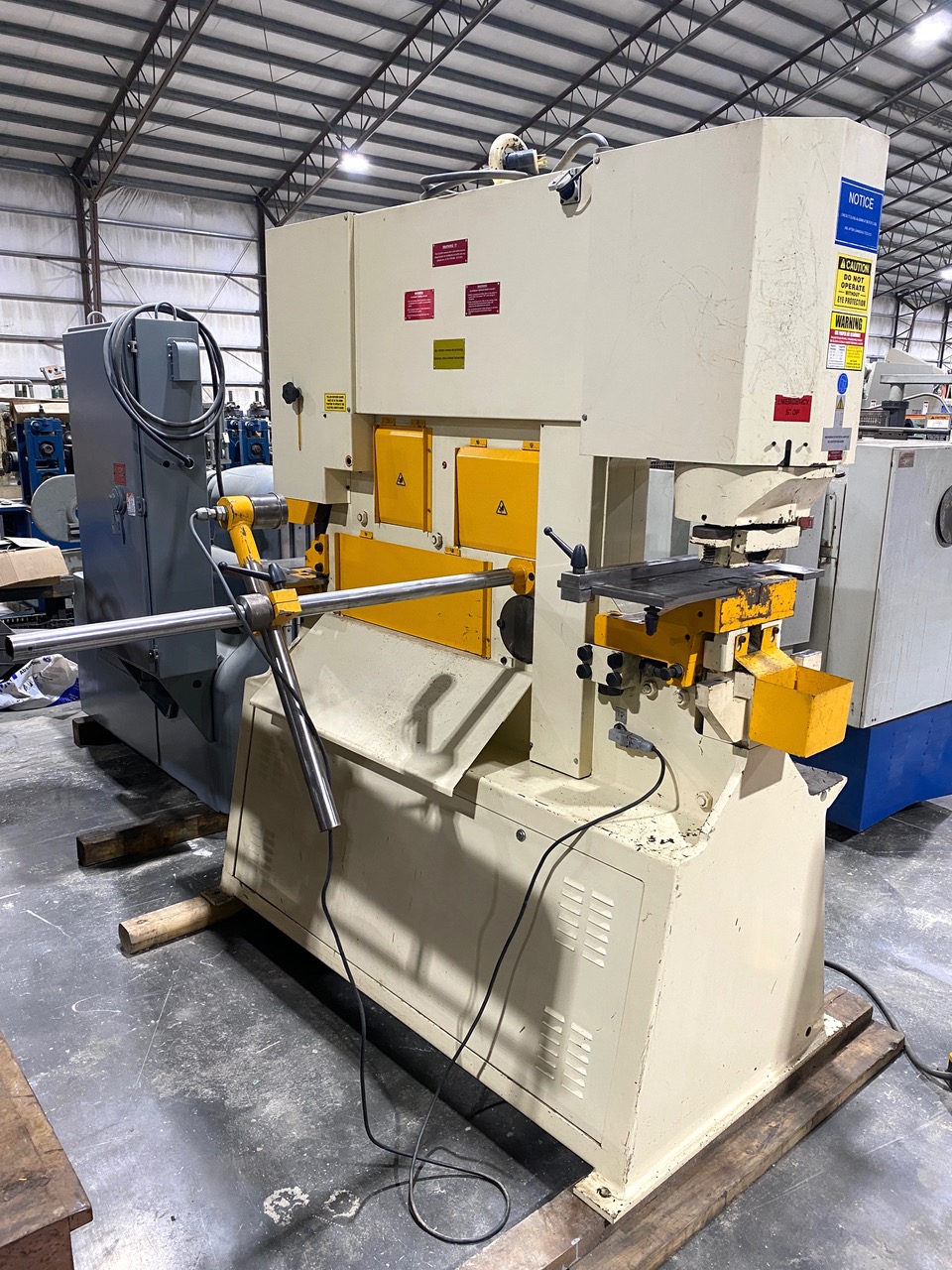

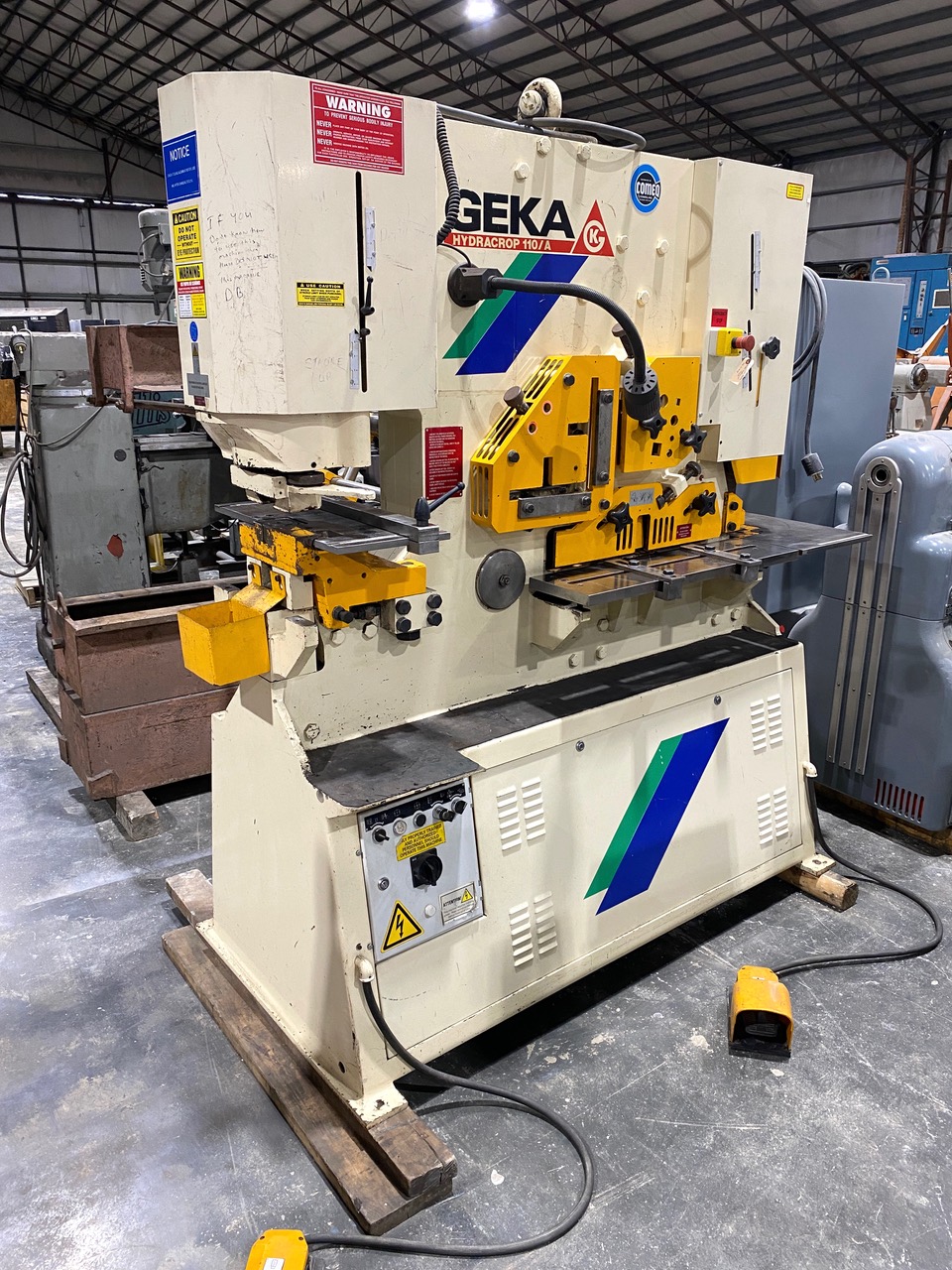

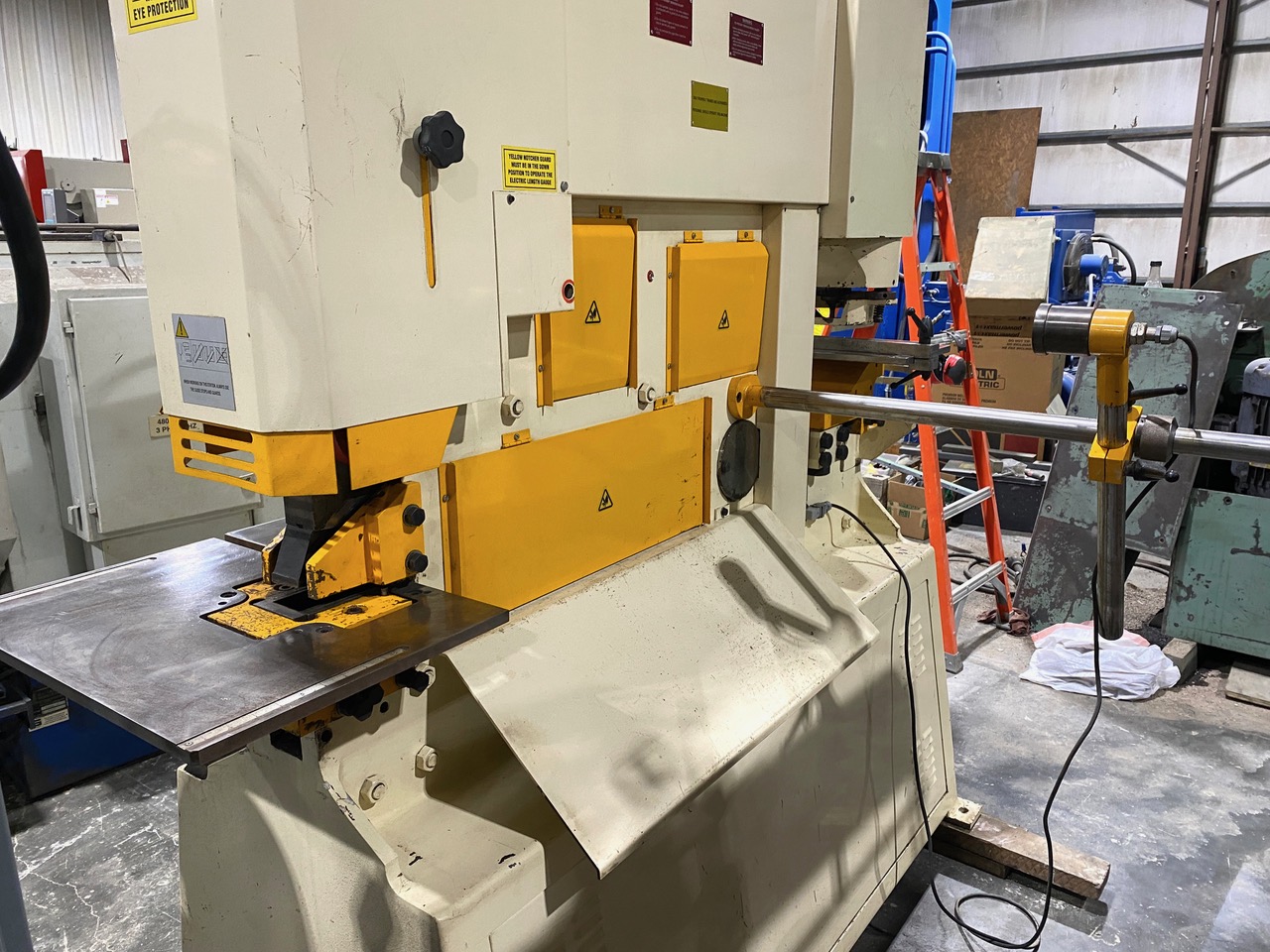

2007 121 ton Geka Hydracrop 110/A Hydraulic Ironworker

Tonnage                                                                     121

Punching Capacity                                                    1-1/2″ through 3/4″

Punch Stroke                                                             3”

Punch table work height                                           45-1/2”

Throat Depth                                                              12”

Angle Shear @ 90                                                      6-1/2″ x 6-1/2″ x 1/2″

Angle Shear @ 45                                                      3″ x 3″ x 5/16″

Plate/Flat Bar Shear                                                 24″ x 5/8″

Round Bars                                                                2”

Square Bars                                                               2”

Coping/Notching                                                       4″ x 2″ x 1/2″

Coper & flat shear stroke                                         4.5″

4″ C-channel capacity                                               4″ x 5.4 lb/f

3″ C-channel capacity                                               3″ x 4.1 lb/f

Main Motor                                                                 7.4 HP, (5.5 kW)

Electrics                                                                      240/480/3/60 21.2/10.6 amps

Approximate Dimensions                                        78”L x 36”W x 77”H

Approximate Weight                                                5,500 Lbs

Dual operator ironworker

(2) independent cylinders

(2) foot pedal controls

(5) work stations

–Punch station

– Angle shear station

– Section shear station

– Flat bar shear station

– Coper station

Magnetic Work Light

40″ Electric “flip stop” for shearing stations

Round/square bar knives for section shear station

C-channel knives for section shear station (3″, 4″)

Pipe notching attachment (1-1/4″)

Miscellaneous punch tooling
