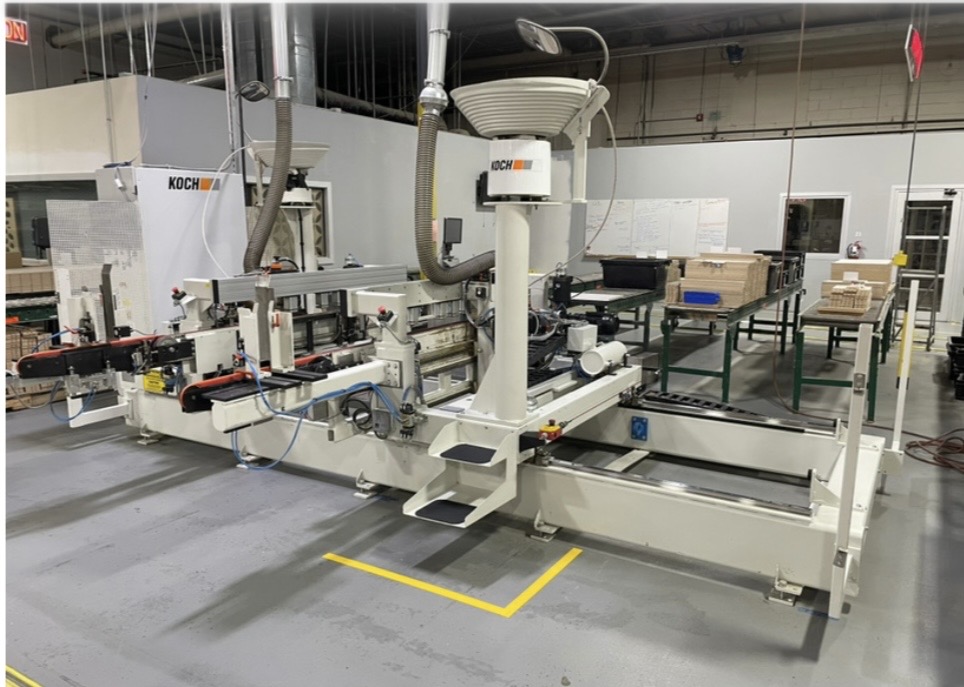

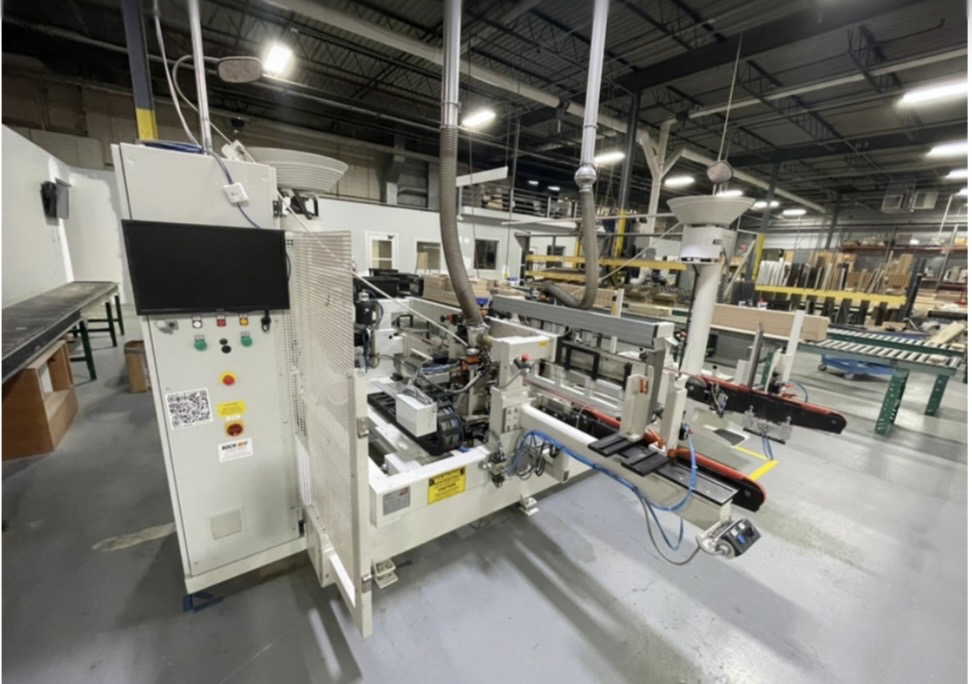

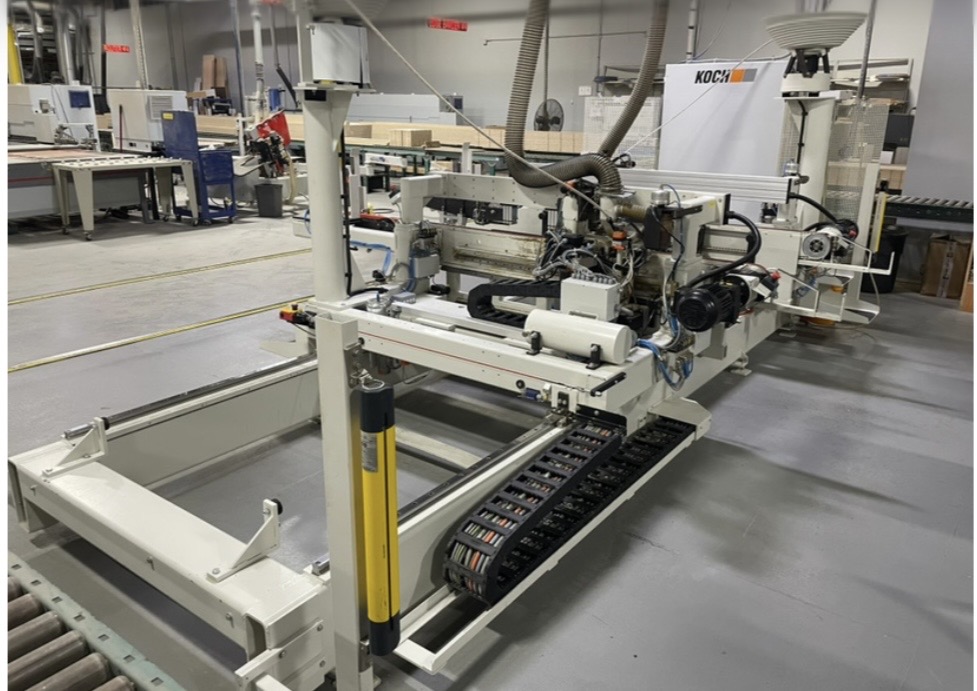

2013 Koch Sprint 200 Classic Feed-Through Boring & Dowel Inserter – Double-end, automatic BGD machine for straight workpieces with

(2) PTP Bore, Glue & Dowel Units & Automatic Belt Feeding

Working Dimensions: Stock length: 10.8″ – 98.4″ (275 – 2,500 mm)

Stock width: 2-3/4″ – 27-1/2″ (70 – 700 mm)

Stock thickness: 0.59″ – 1.18″ (15 – 30 mm)

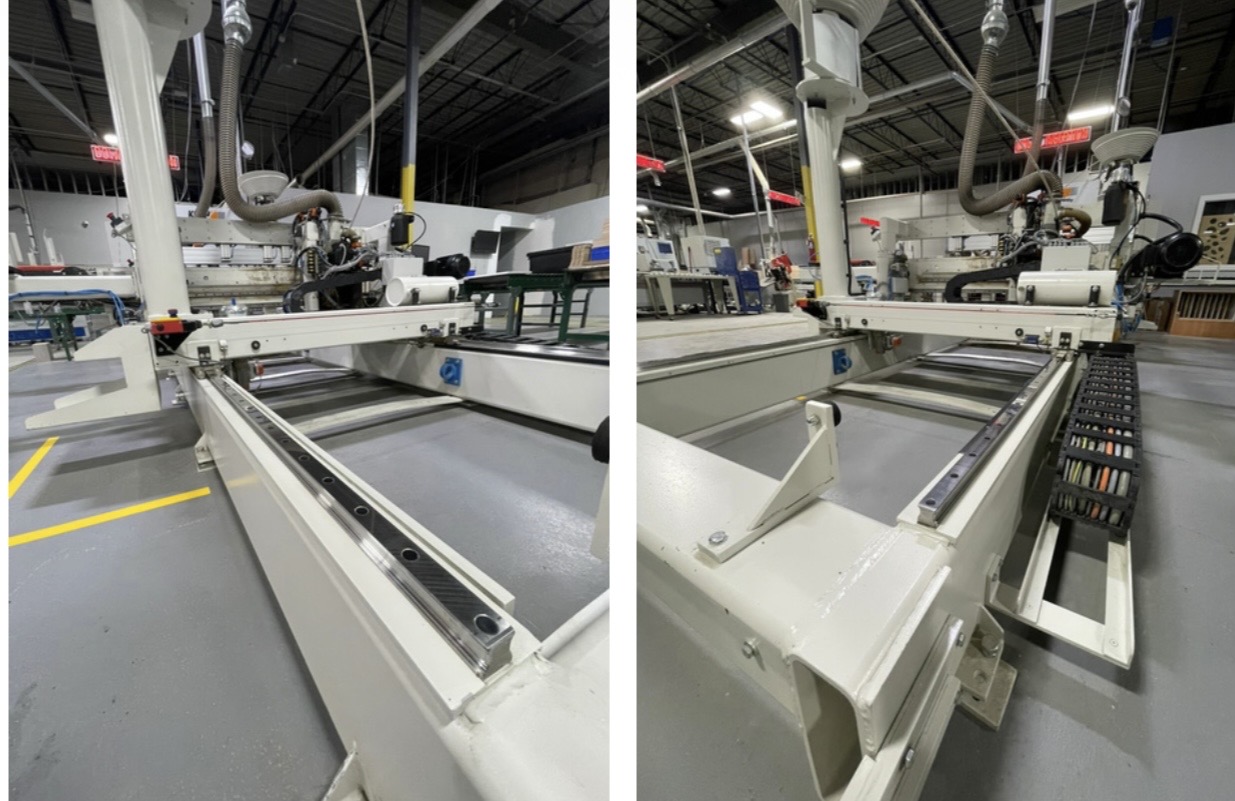

Horizontal Drilling Stations Each side traveling on “precision” linear guides

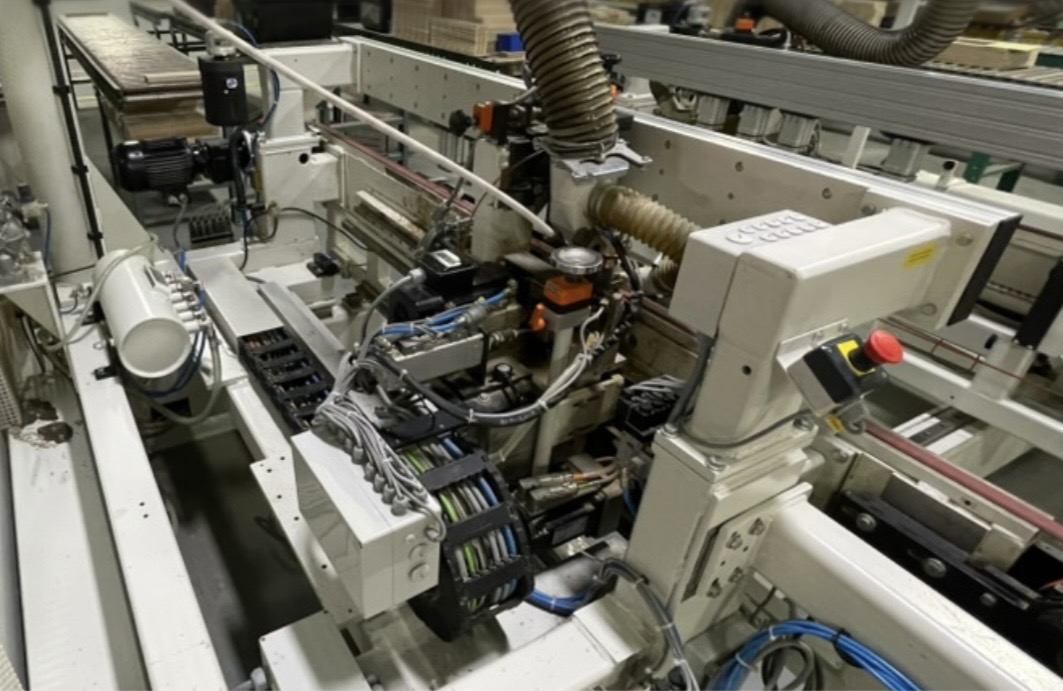

(1) horizontal drilling unit with: (1) 1.2 HP (0.9 kW) – 7,200 RPM motor

1.1″ (28 mm) Max. drilling depth; total length of drill bits: 2.76″ (70 mm)

Dowel Inserting dia.: 8 mm;

Dowel length: 30 mm;

Dowel projection: 7 – 14 mm.

(2) Vibrating hoppers with: (1) Outlet tube for feeding of dowels on each side
