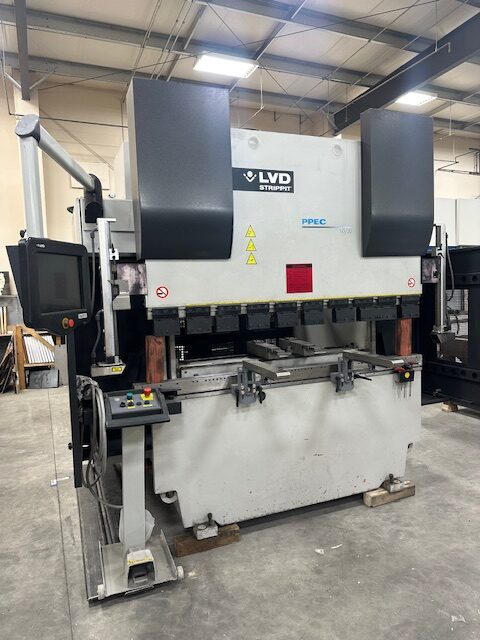

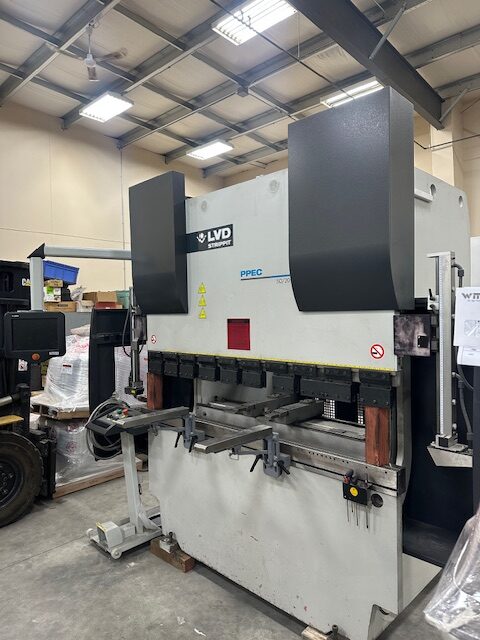

2014 LVD PPEC 50/20 CNC Press Brake

Tonnage 51 Metric / 56 US Short

Bed Length 2000mm / 78”

Distance between frames 1550mm / 61”

Open height / Gap 350mm / 13.77”

Stroke 200mm / 7.87”

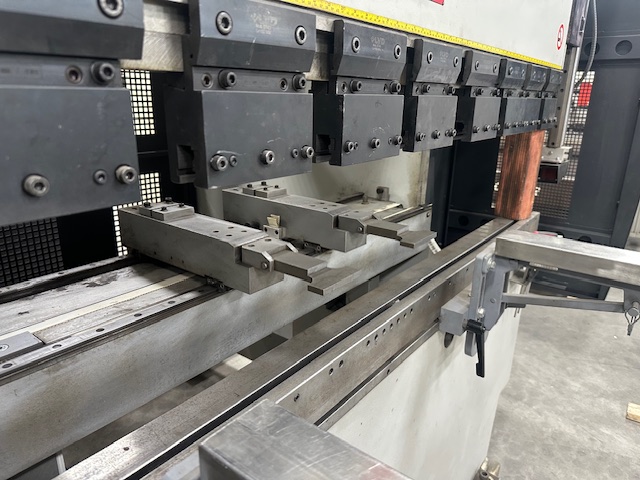

Clamping style New Standard / Mechanical / Manual

Ram Axis Y1/Y2 –

Voltage / Kw / HP 575/3/60 – 7.5kw / 10Hp

Back gauge Axis 4 X, R, Z1/Z2

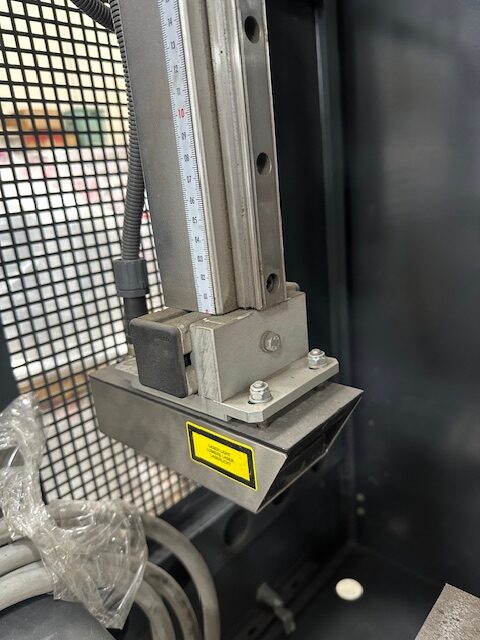

Operator Safety device Laser Safe

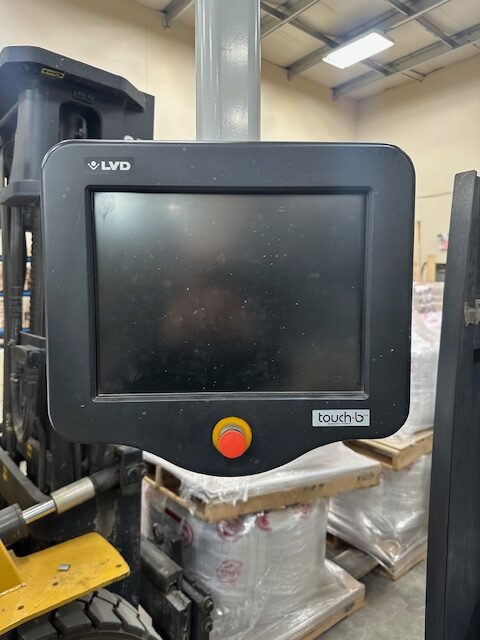

Control LVD Touch B CNC graphical 6 Axis Control (as listed above)
