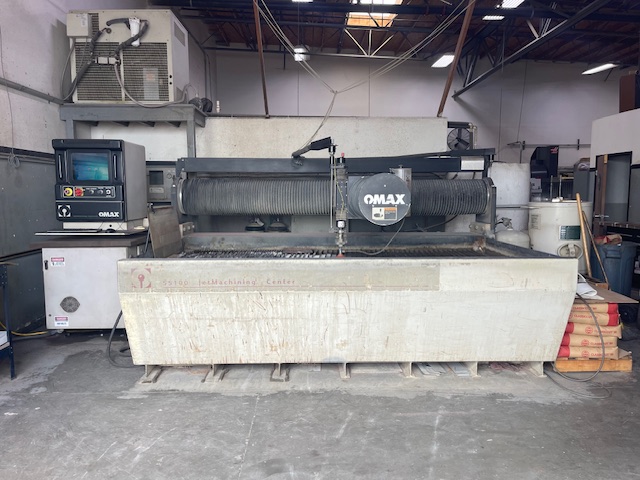

2003 Omax 55100 CNC Water Jet

Maximum Cut Size                                                                55” X 100”

Overall Size of Water Tank                                                   10’6” x 5’5”

Z-Axis Travel                                                                           8”

Intensifier HP                                                                         30

Intensifier PSI                                                                                    50,000

Speed                                                                                     180 IPM

Accuracy/Repeatability                                                        +/- 0.001

Approximate Footprint (w/Controller)                                 12’11” x 7’10”

Approximate Weight                                                             8,000 LBS

Electrical Requirements                                                       480/3/60

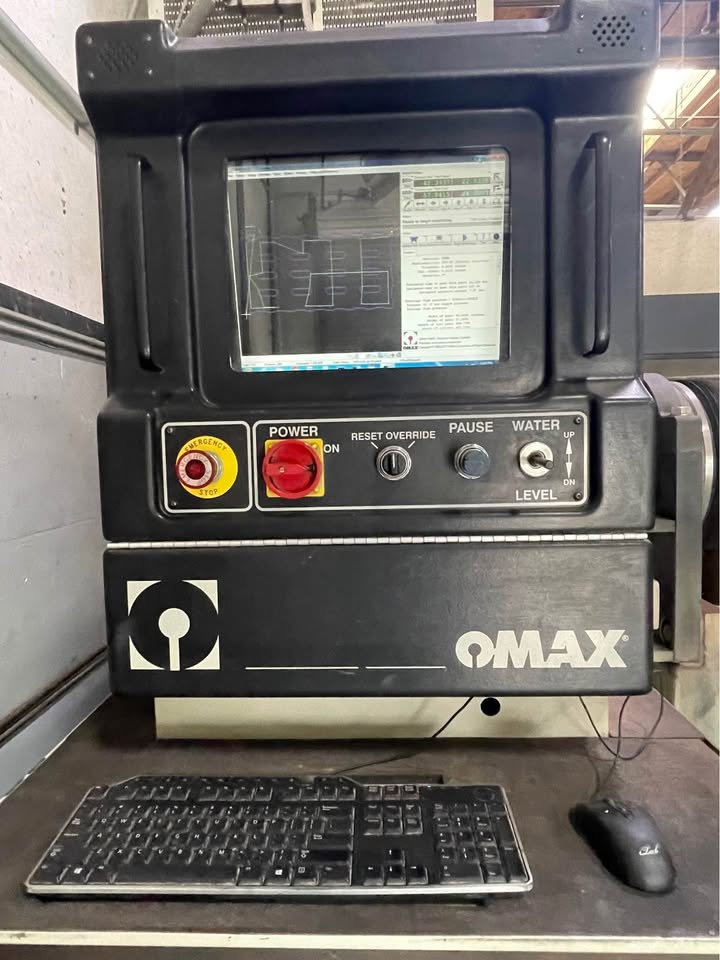

Omax CNC Control

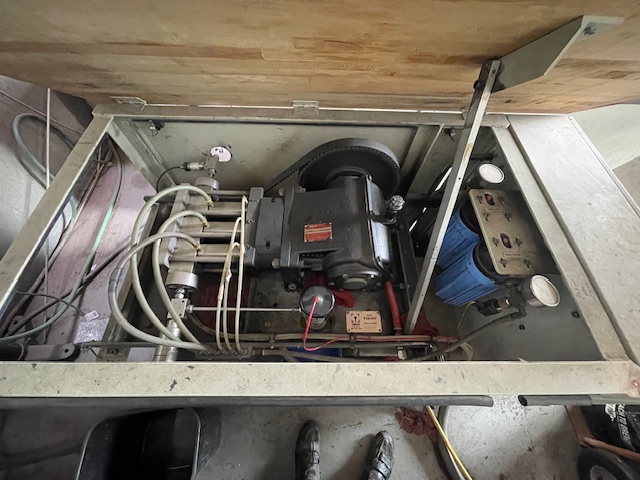

Omax P3050V Pump

Water Level Control

Cantilever Style

Garnet Hopper

Chiller included
