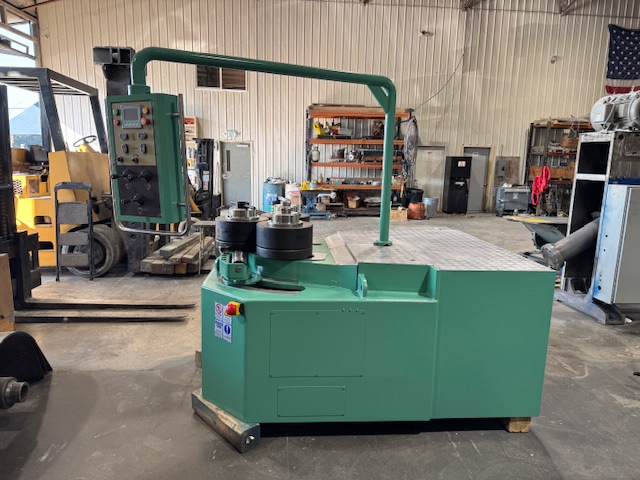

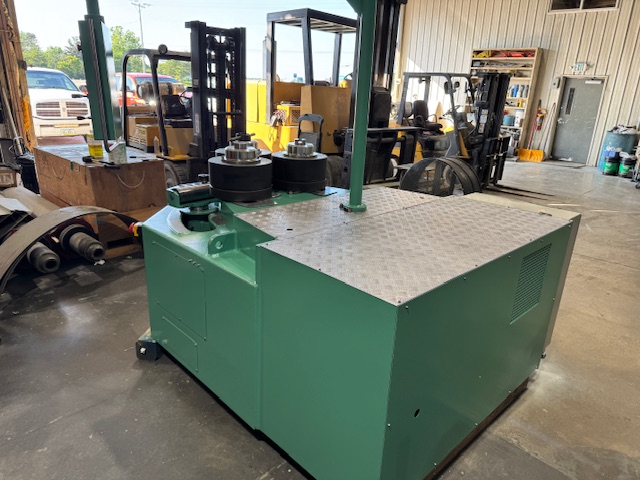

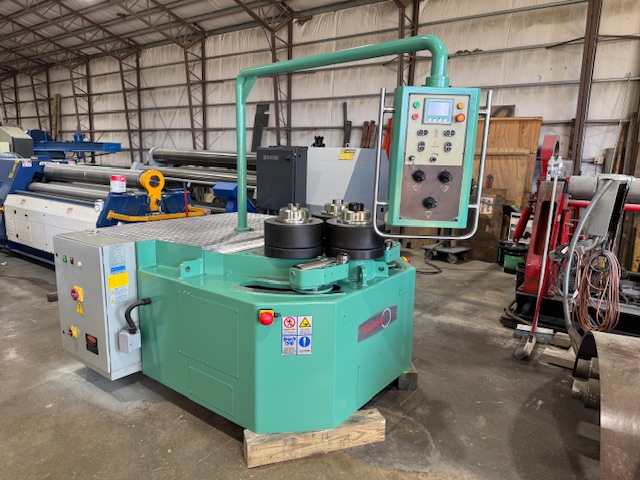

Roundo R5S Hydraulic Bending Angle Roll *This is in new condition, never placed into service.

Rolling Capacity                                                         5” x 5” x ½”

Roll Diameter                                                            15.2”

Angles, leg in                                                             4″ x 4″ x 1/2″ (50″ dia)

Tees, leg out                                                              WT 5 (45″ dia)

Tees, leg in                                                                 WT 5  (60″ dia)

Tees, on edge                                                             WT 5 (40″ dia)

Flats on edge                                                             6″ x 5/8″ (45″ dia)

Flat on flat                                                                  8″ x 2″ (40″ dia)

Square Bar                                                                 2-3/4″ (32″ dia)

Round Bar                                                                  3-1/2″ (40″ dia)

Pipe                                                                            5″ Sch 40 (70″ dia)

Tube                                                                           4″ x 1/4″

Beams                                                                        W8 x 21 ; W6x 20

Main Motor                                                                17.5 HP

Electrical Requirements

Approximate Dimensions                                         ”L x ”W x ”H

Approximate Weight                                                10,200 Lbs

*This machine was built for Roundo by Akyapak to model R5S specifications, new, never used.
