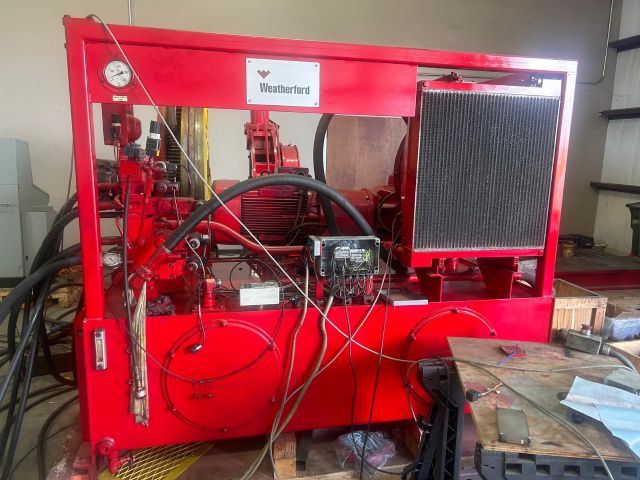

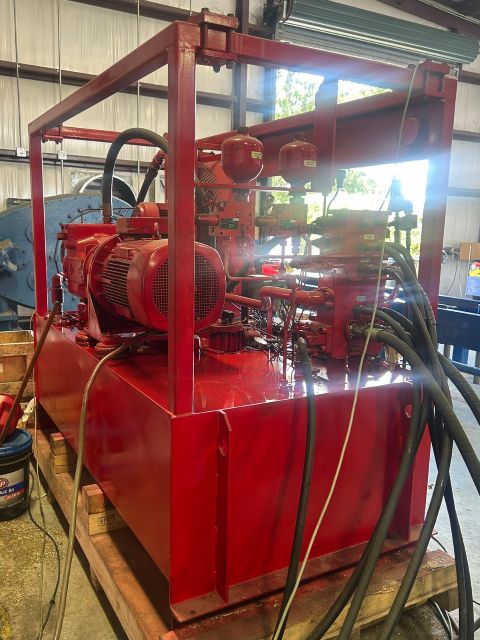

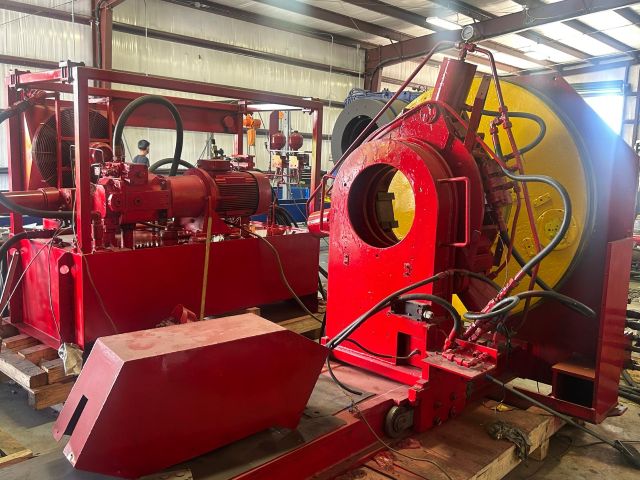

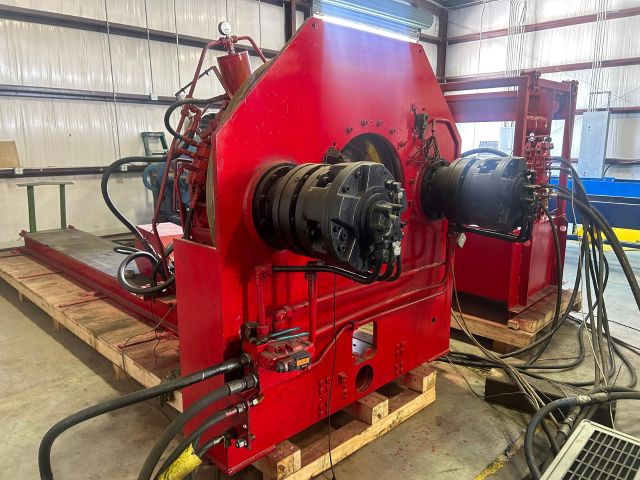

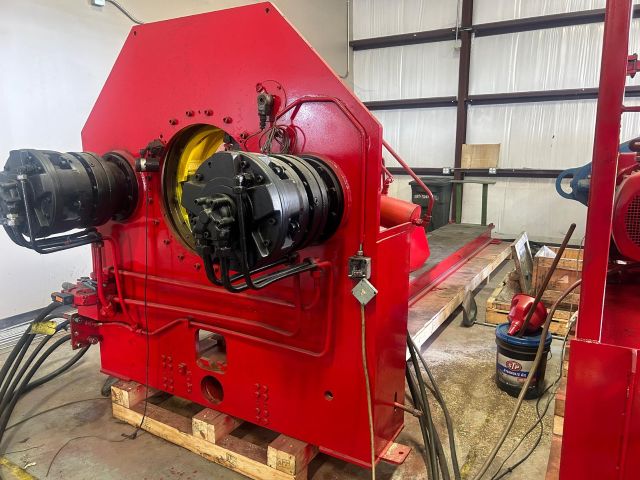

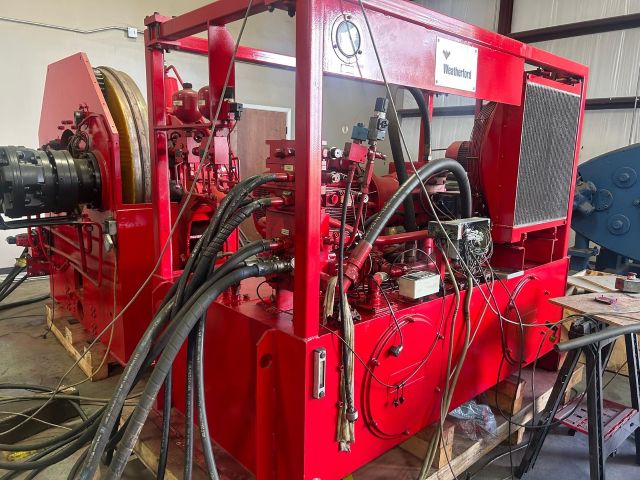

Weatherford Make/Break Precision Bucking Machine Model CAM-F-13.375/80H

Pipe Size Range                                            2-3/8” to 13-3/8”

Pipe Center Height                                        46”

Torque arm length, backup                          27”

Max Rotor Speed RPM hi/low                      15

Max Clamping force at backup                    75,985 ft. lbs.

Max Clamping pressure at backup             3191 psi

Max Clamping force at rotor                         78,683 ft. lbs.

Hydraulic pressure                                         4569 psi

Hydraulic flow                                                95 gpm

Max. wrenching torque: 80,000 ft. lbs. w/break cylinder at moveable backup

Max. makeup/breakout torque: 80,000 ft. lbs. w/rotary head only

Approx. weight                                               10,000 lbs

Approx. dimensions                                      228” x 67”w x 72”h

Accurate Torque Control

Self -Aligning Jaws

Automated Speed Control

Dynamically adjusted Gripping Force

Spindle Adjustment System
