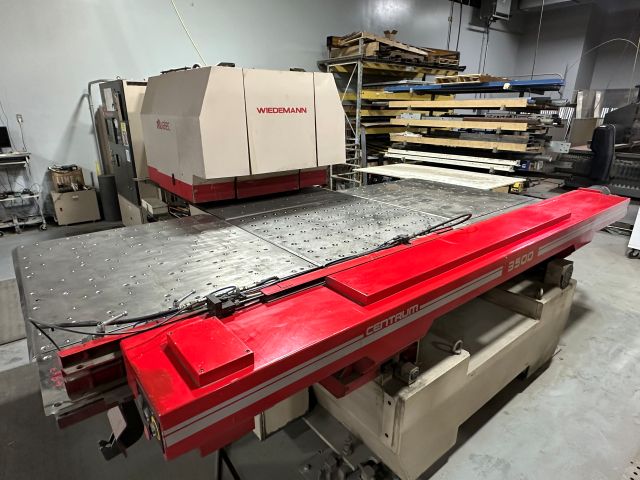

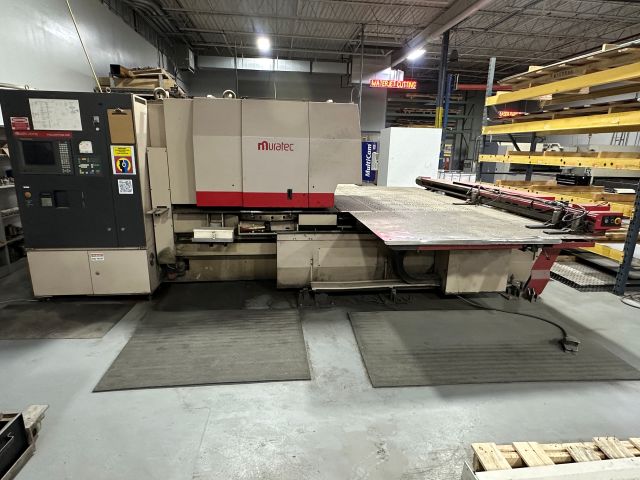

1994 Wiedemann/Muratec Centrum 3500 CNC Turret Punch

Maximum sheet size (no reposition): 74.8″ x 78.7″

Punching capacity: 33 tons (30 metric tonnes)

Throat depth: 63″ (1620mm)

Press drive motor: 10 HP

Power Requirements: 40 amps @ 460V, 3 phase

Air Requirements: 3.5 SCFM @ 80 psi

Approximate Dimensions                                         222”L x 178”W x 84”H

Approximate Weight                                                 33,000 Lbs

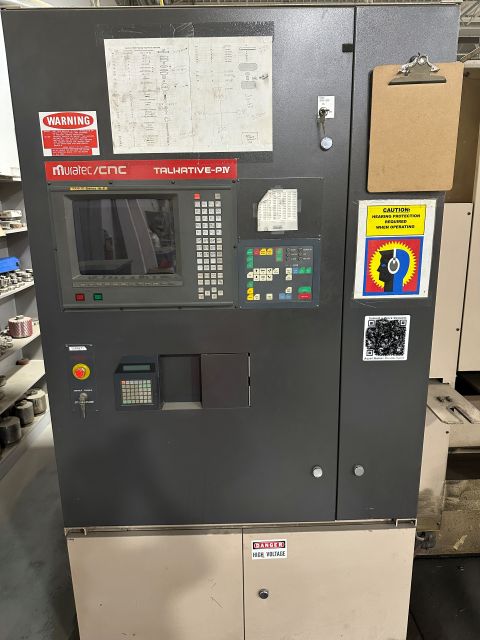

Talkativ-Piv Control

Graphic 14″ color monitor

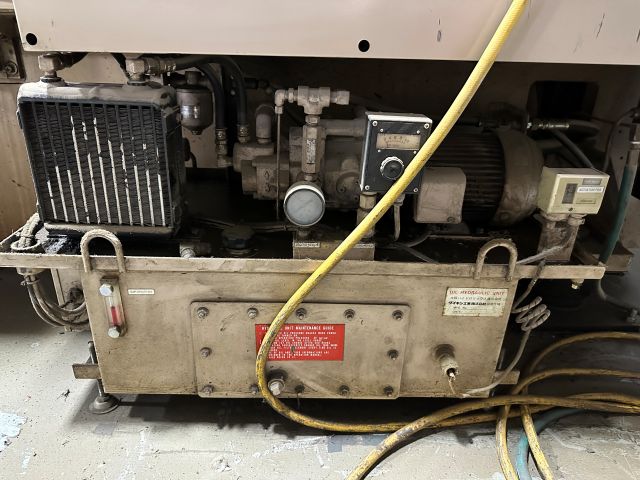

Clutch/brake system: Hydraulic

Geometric programming

Over 300 Tools Included

“Jog” control of all operational machine functions
