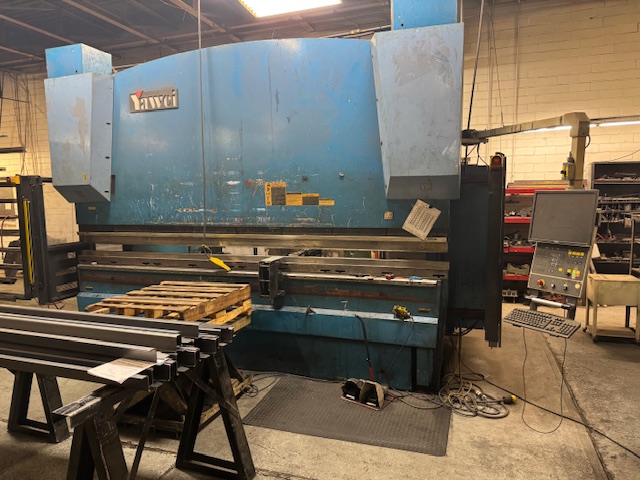

2007 400 ton Yawei CNC (5-axis) Press Brake

Tonnage 400

Bending length 161.42″ (4100 mm)

Ram stroke 14.37″ (365 mm)

Throat depth 20.08″ (510 mm)

Clearance between bed & ram 20.41″ (620 mm)

Bending speed 0.35 in/sec (9 mm/s)

Minimum safety distance 0.43″ (11 mm)

Maximum stopping time 120 msec

Input voltage 380 Phase 3 Frequency 50/60 Hz kVA 35 Full load current 100 A

Approximate dimensions 196″ x 100″ x 135″ high

Approximate weight 36.5 tons

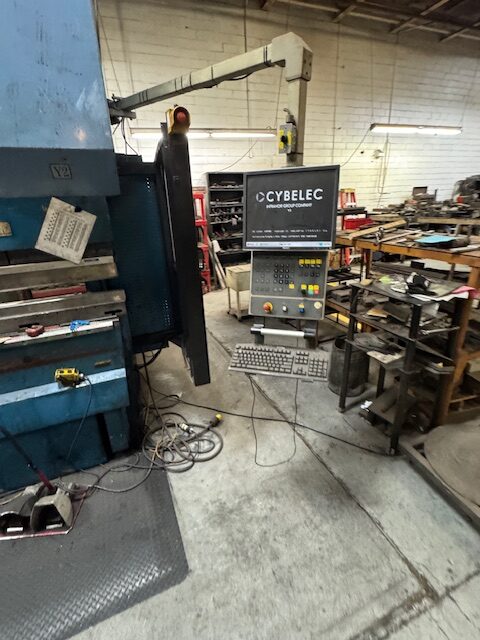

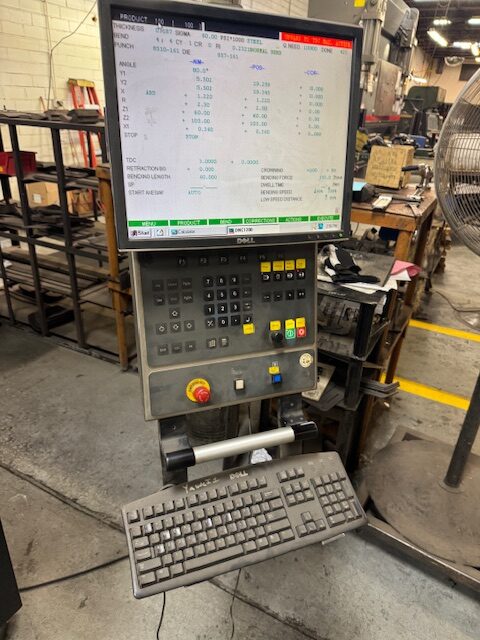

5-Axis CNC

CNC Crowning

Digital Tool Library
