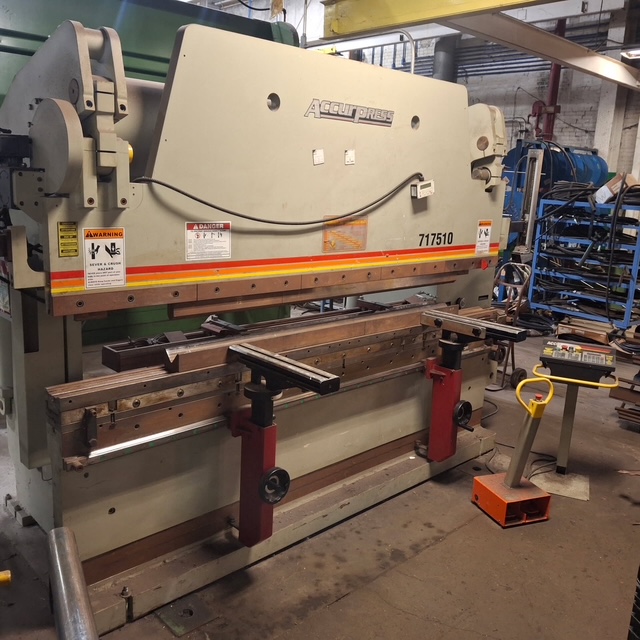

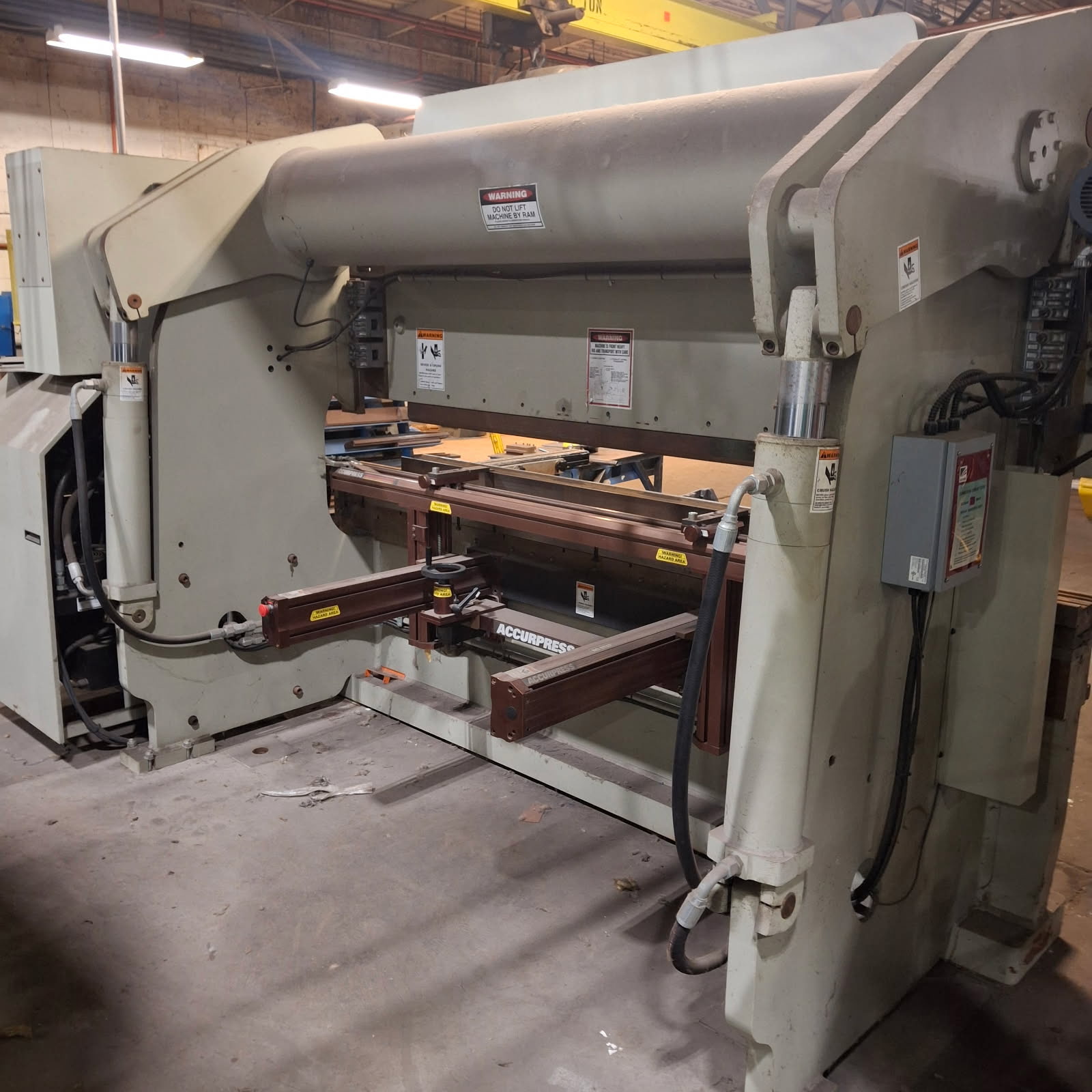

2013 Accurpress 175 Ton CNC Hydraulic Press Brake Model: 717510

Standard Specifications:

Tonnage                                                                     175

Bed Length                                                                 120”

Distance between Housings                                     104”

Stroke                                                                         8”

Open Height                                                               14”

Closed Height                                                             6”

Throat                                                                         10”

Main Motor                                                                 20 HP

Electrical Requirement                                             230/3/60 52/26 amps

Approximate Dimensions                                        158” L x 66” W x 94”H

Approximate Weight                                                24,000 Lbs

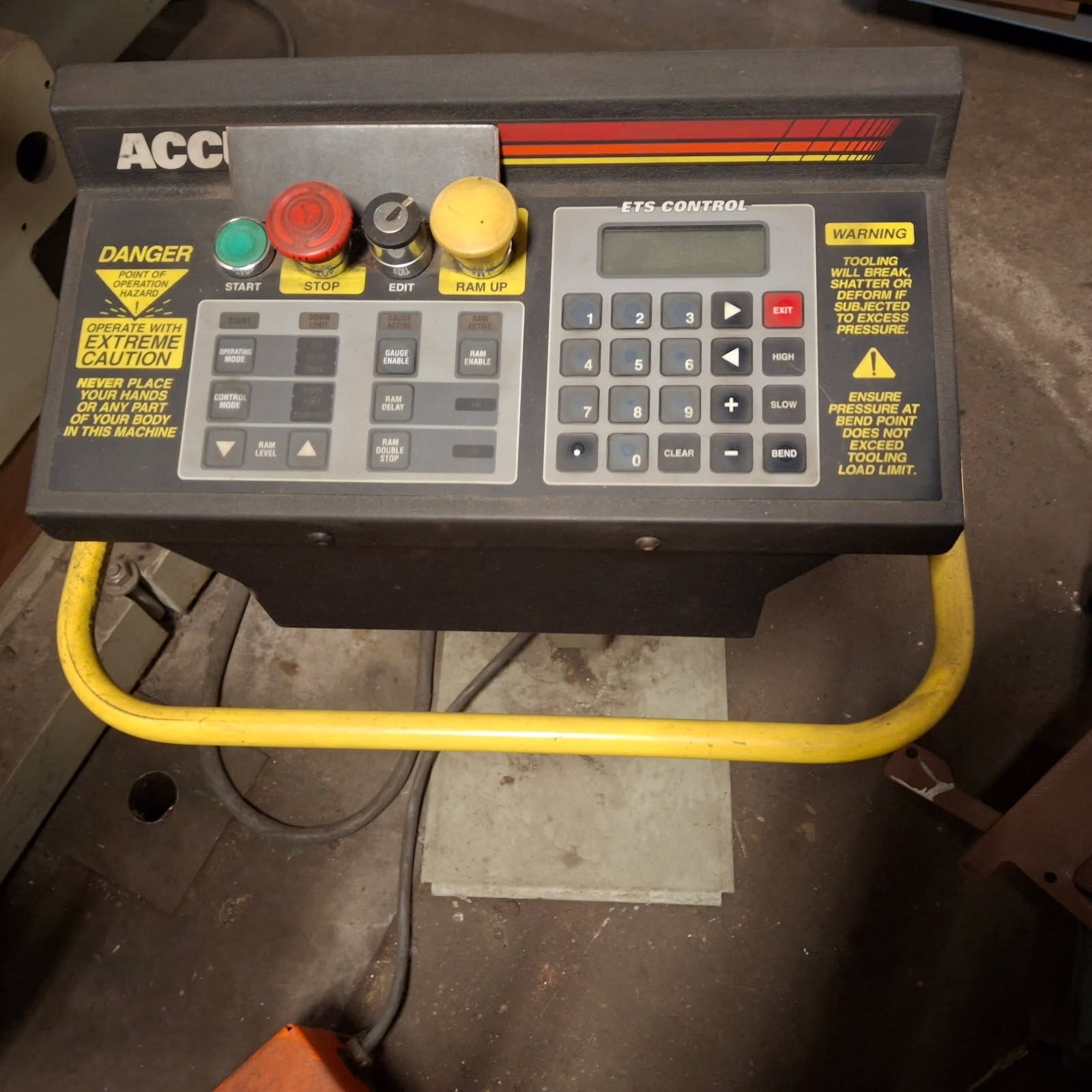

Accurpress ETS Pedestal Control with footswitch

Accurpress backgauge with gauge fingers

Adjustable front arm supports

Flush Floor Mounted
