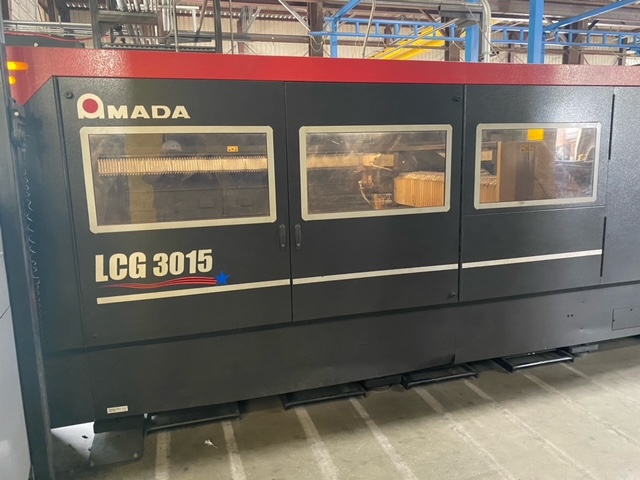

2016 Amada 3500 Watt CNC Laser Cutting System Model LCG3015

Amada Resonator                                                     3,500 Watt

Sheet Cutting Capacity                                             5’ x 10’

Max Processing X,Y,Z axes:                                      120.8″ x 61″ x 3.9″

Positioning accuracy                                                 +/- .1mm

Positioning Speed X, Y:                                             120 m/min

Positioning Speed Z:                                                 80 m/min

Mild Steel Rating:                                                      20 mm

Stainless Steel Rating:                                              10 mm

Aluminum Rating:                                                     8 mm

Max. material mass                                                  2028 lbs

Approximate Footprint                                              394”L x 112”W x 86”H

Approximate Weight                                                 18,100     lbs

Amada CNC Control

Recent Turbo Blower rebuild

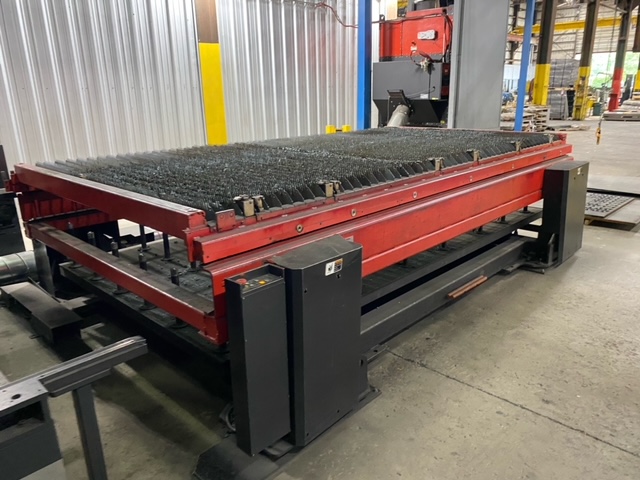

Automatic Shuttle System 2 pallet shuttle table as standard

5” and 7.5” cutting lenses

Laser Cutting Head

Amada PowerCore dust collection (Donaldson/Torit)

Orion Chiller
