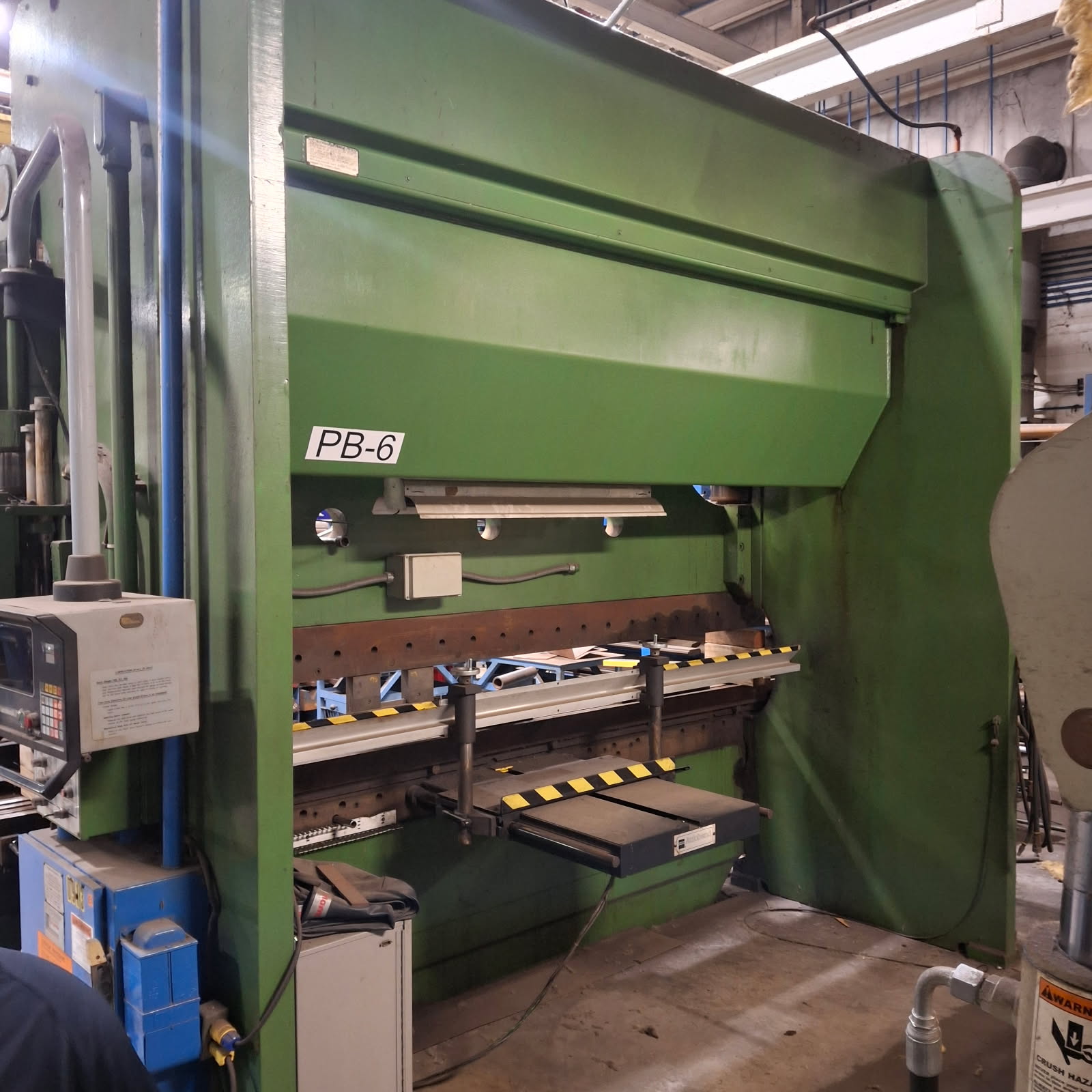

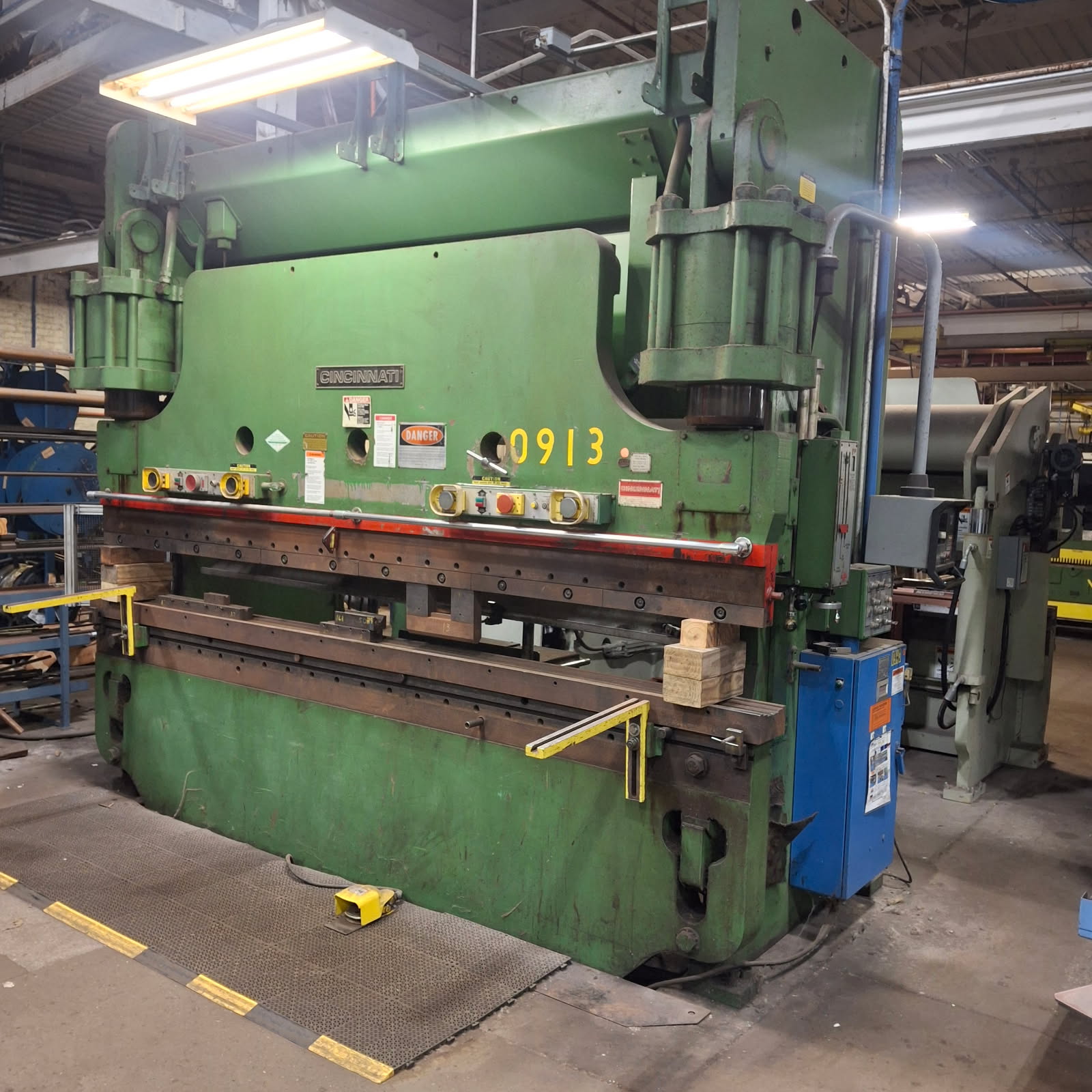

Cincinnati 350CB10 Hydraulic Press Brake mfg in 1977

Capacity                                                                                  350 TONS

Overall Length of Bed & Ram                                                            12’

Distance Between Housings                                                    10’6”

Stroke                                                                                     10”

Open Height                                                                             18”

Closed Height                                                                         8”

Throat Clearance                                                                   10”

Speed

Approach                                                                    105 Inch/Min

Form                                                                            5 / 10 / 20 Inch/Minute

Return                                                                        95  Inch/Minute

Width At Top Of Bed                                                              5 1/2”

Main Motor Horsepower                                                       35 230/460/3/60

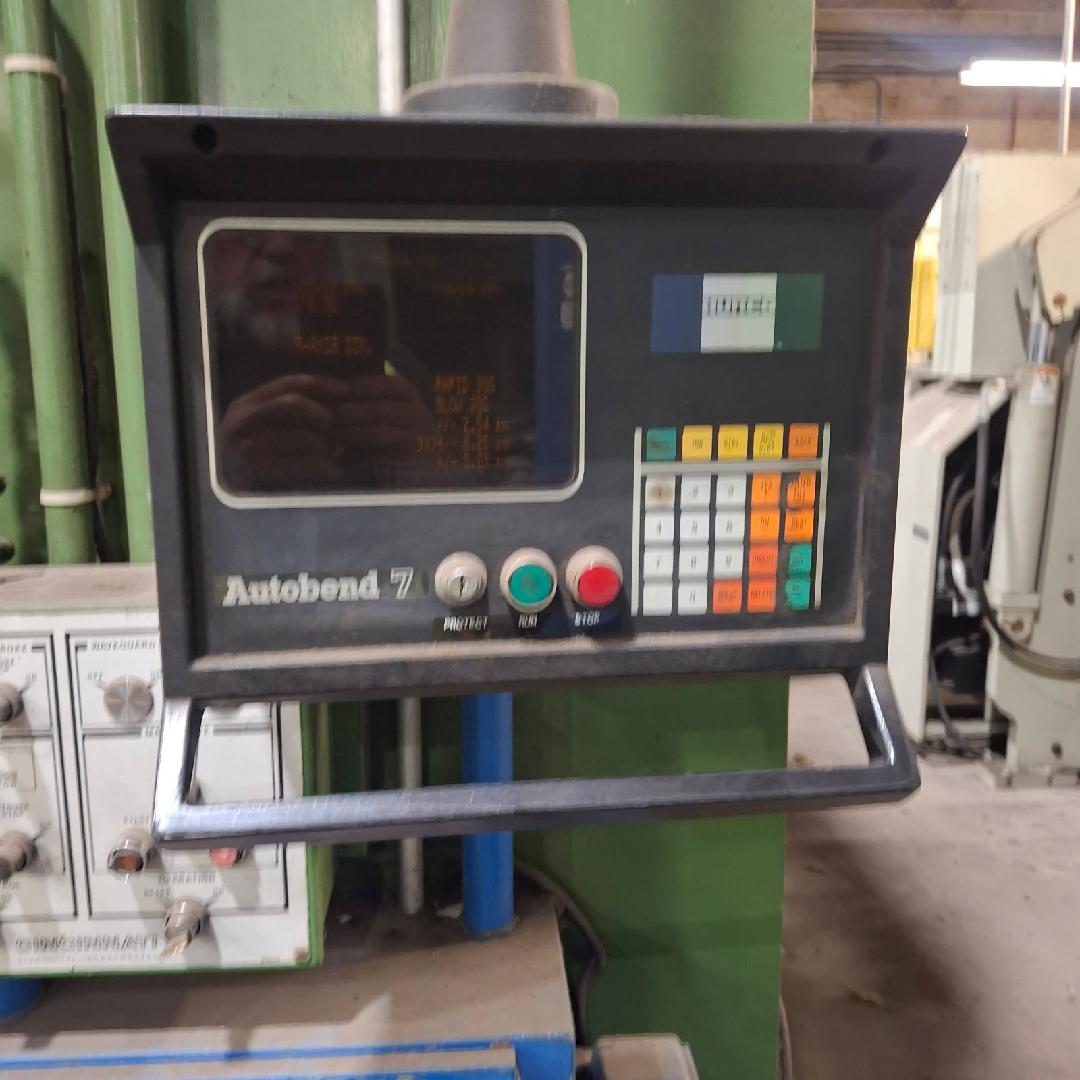

Hurco Autobend 7 CNC backgauge

Palm Button Station

Bed & Ram Machined for Angles

Ram Tilt Adjustment

Interlocked Construction, Clevis Mounted Cylinders

Approximate Overall Weight                                     37500 lbs.

Approximate Overall Dimensions                               148 L X 60’ W X 133 5/8″ H

Requires 12” Risers or a 12” Pit
