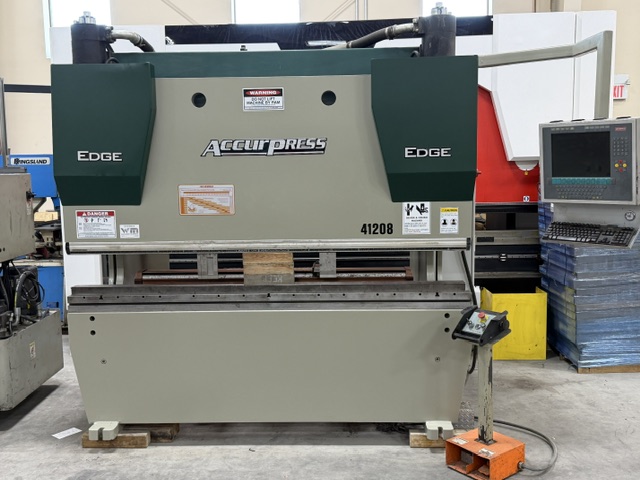

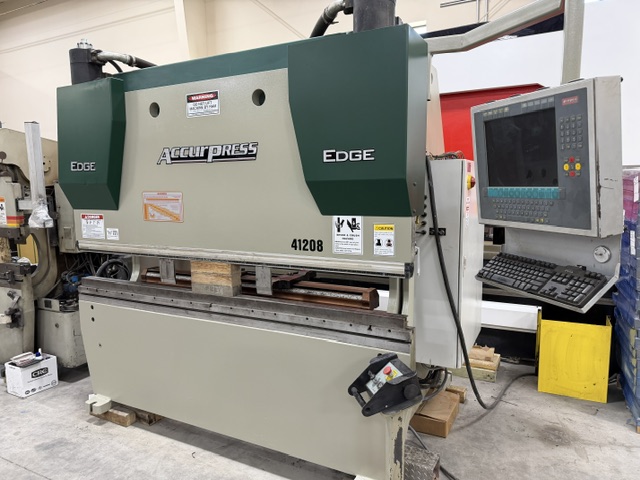

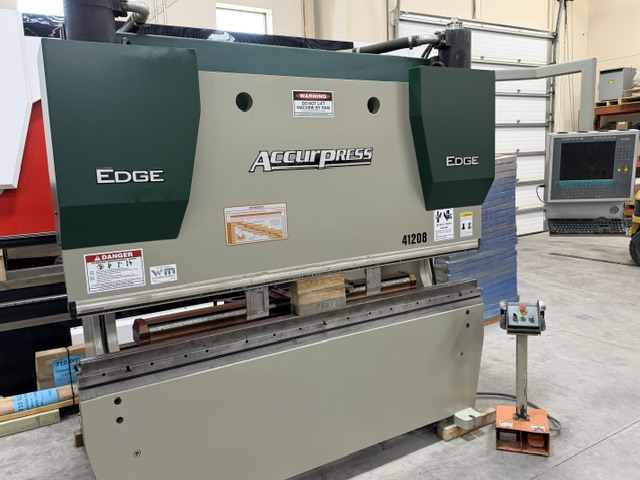

Accurpress Edge 120 Ton CNC Hydraulic Press Brake Model: 41208 mfg in 2009

Tonnage                                                      120

Bed Length                                                   8′

Distance Between Housings                     78″

Stroke Length                                               10″

Open Height                                                18″

Close Height                                                 8″

Throat                                                          12”

Approach Speed                                      520 IPM

Bending Speed                                        24 IPM

Return Speed                                         260 IPM

Motor HP                                                      15

Approximate dimensions            102” x 60” x 100” h

Approximate weight                             14,000 lbs

Accurpress ETS 3000 CNC Control 5-Axis

Accurpress Premium Back Gage

Upper and Lower Hydraulic Clamping

Pedestal Station

Flush Floor Mounted
