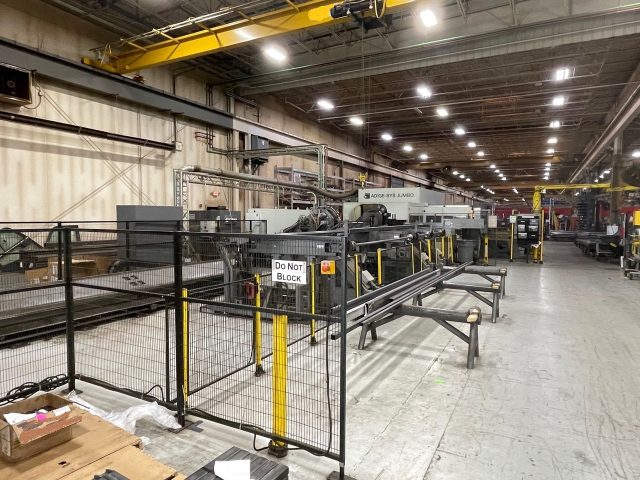

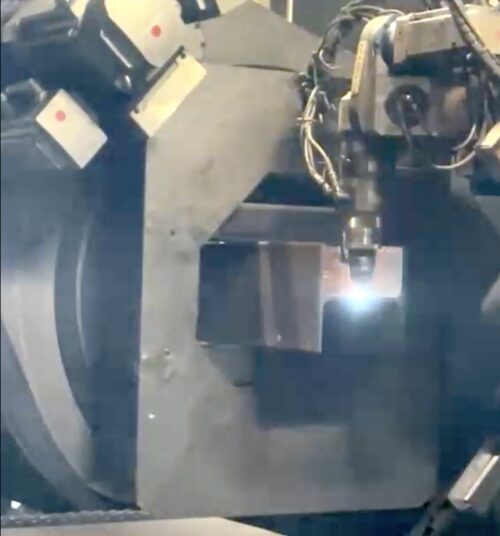

Laser power 3.5 KW

Laser head travel from left to right (X-axis) 78.74″ (2000 mm)

Laser head vertical travel (Y-axis) 27.56″ (700 mm)

Laser head ram feed (Z-axis) 27.56″ (700 mm)

Laser head oscillation (B-axis) -45?–135?

Laser head rotation (C-axis) ?45?

Tube rotation (A-axis) N*360? (*See features)

Pass line 60.63″ (1540 mm)

Vertical stroke of inlet roller bed (V-axis) 11.02″ (280 mm)

Vertical stroke of outlet roller bed (W-axis) 11.02″ (280 mm)

Transversal movement of the piercing unit (X40-axis)11.81″ (300 mm)

Vertical movement of the piercing unit (Y40-axis) 23.03″ (585 mm)

Piercing unit spindle advancement (Z40-axis) 40.16″ (1020 mm)

Piercing spindle rotation (SP40-axis) N*360?

Load bed minimum bar length 177.16″ (4500 mm)

Load bed maximum bar length 492.13″ (12500 mm)

Load bed maximum bar weight capacity 68.52 lbs/ft

Unload bed minimum length 118.11″ (3000 mm)

Unload bed maximum length 334.65″ (8500 mm)

Short part evacuator minimum length 3.94″ (100 mm)

Short part evacuator maximum length 118.11″ (3000 mm)

Bar dimensions, maximum thickness 0.63″ (16 mm)

Round section diameter 1.18″-13.98″ (30-355 mm)

Square section – inch 1.18″ x 1.18″ – 10.24″ x 10.24″

Square section – metric 30 x 30 mm – 260 x 260 mm

Rectangular section – inch 1.18″ x 1.18″ – 11.81″ x 7.87″

Rectangular section – mwtric 30 x 30 mm – 300 x 200 mm

C section (channel) – inch 3.15″ x 3.15″ – 10.24″ x 10.24″

C section (channel) – metric 80 x 80 mm – 260 x 260 mm

L section (angle) – inch 3.15″ x 3.15″ – 10.24″ x 10.24″

L section (angle) – metric 80 x 80 mm – 260 x 260 mm

HE section (H-beam) 5.51″ – 10.24″ (140-260 mm)

IPE section (I-beam) 3.15″ – 11.81″ (80-300 mm)

Voltage 480 Phase 3

Load bed with alignment & singling devises and load transfers; Inlet roller

bed; Air Bed; Enclosure; 5-axis Laser (double rotary head & focusing

head); Rofin Sinar DC 35 laser source; Tail carriage (X1 axis travel; *A1-

axis rotation); (2) Spindles (X2, X3-axis travel; *A2, A3-axis rotation);

Scrap evacuator; Short part evacuator (U-axis, vertical movement of bed

plate); Piercing/threading unit; ADILUBE tool lubrication system; Outlet

roller bed; Unload bed; Double Siemens Sinumerik 840D CNC control

(Windows XP platform); Fume extractor; Cooling units
