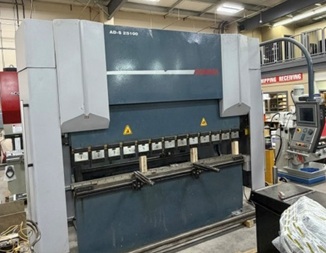

2008 Durma 110 Ton CNC Hydraulic Press Brake Model AD-S 25100

Tonnage                                                                     110

Bed Length                                                                 100”

Distance between Housings                                     86”

Stroke                                                                         10.4”

Open Height                                                               18”

Throat                                                                         16”

Main Motor                                                                15 HP

Electrical Requirement                                             *575/3/60

Approximate Dimensions                                        150” L x 66” W x 109”H

Approximate Weight                                                17,900 Lbs

Delem DA66W CNC Control

2 Axis Backgauge (X/R axis)

Y1/Y2 Axis Ram Control

CNC Crowning table

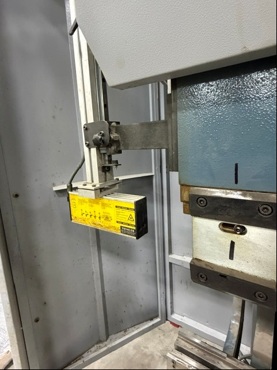

Fiessler Operator safety system

Lower 4 way die 12mm / 20mm / 32mm / 50mm

Upper GN punch 0.08” tip rad

Flush Floor Mounted

*600/480 machine transformer to suit US voltage 480/3/60
