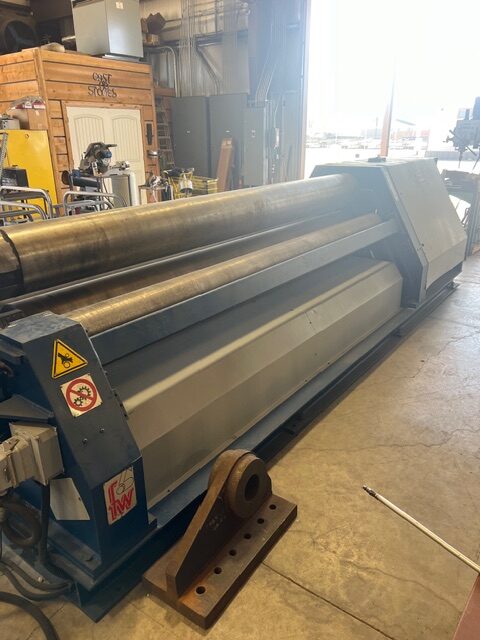

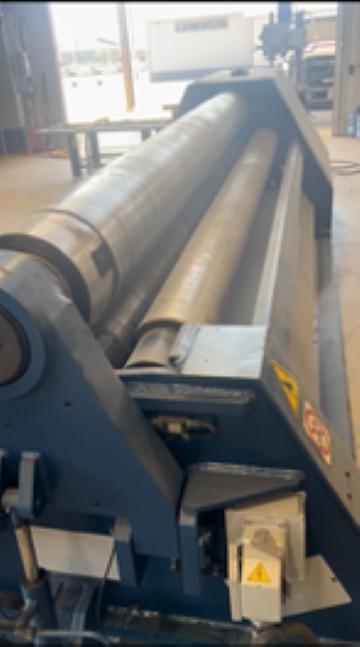

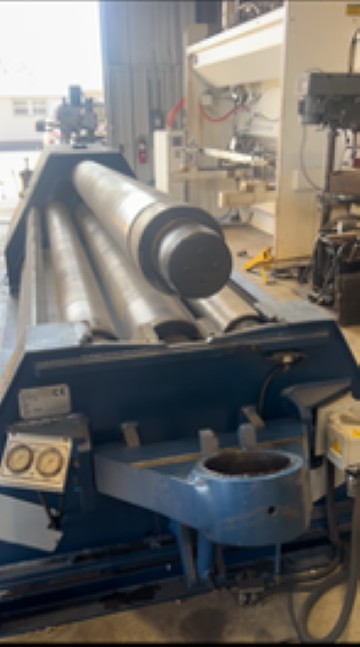

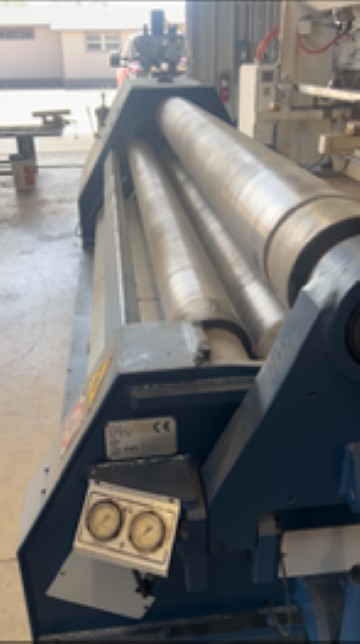

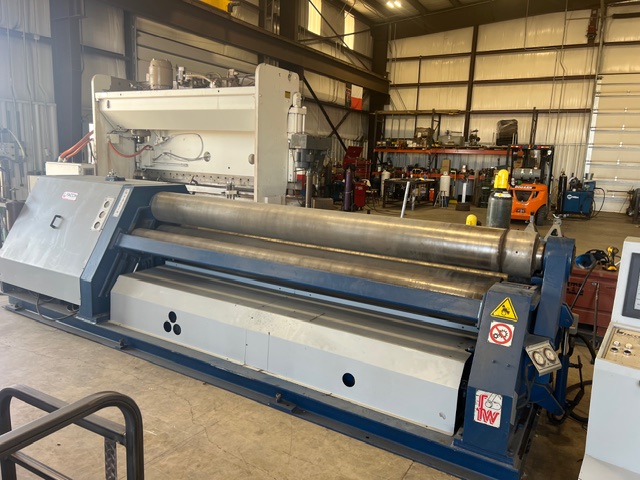

10’ x ½” Faccin 4 Roll Double Pinch Plate Bending Model 4HEL-3128, mfg in 2006

Bending length – 10′

Distance between housings – 10′ 2″

Top roll diameter – 11.15”

Pinch roll diameter – 10.63”

Side roll diameter – 7.87”

Driven rolls (hydraulic motors) – 2

Rotation speed – 16 feet / minute

Controls & Balancing – Electronic

… Rolling only (55-1/4” ID), full-length @ 36000 PSI – 0.472”

… With pre-bending (55-1/4” ID), full-length @ 36000 PSI – 0.315”

… Rolling only (14-1/2” ID), full-length @ 36000 PSI – 0.315”

… With pre-bending (14-1/2” ID), full-length @ 36000 PSI – 0.236”

… Rolling only (55-1/4” ID), full-length @ 52000 PSI – 0.406’

… With pre-bending (55-1/4” ID), full-length @ 52000 PSI – 0.271”

… Rolling only (14-1/2” ID), full-length @ 52000 PSI – 0.271”

… With pre-bending (14-1/2” ID), full-length @ 52000 PSI – 0.203”

… Rolling only (55-1/4” ID), half-length @ 52000 PSI – 0.508”

… With pre-bending (55-1/4” ID), half-length @ 52000 PSI – 0.339”

Motor                              16 HP (12 kW), 440/3/60 Amps 21.2

Approximate dimensions: 212″ x 60″ x 56″ high

Approximate weight: 19,841 lbs. (9000 kg)

4-roll double initial pinch

Hydraulic adjustment of pinching and lateral rolls

Top and pinching rolls driven

Electronic balancing

Normalized, hardened & stress relieved roll forgings

Hydraulic drop end

Hydraulic protection against overloads

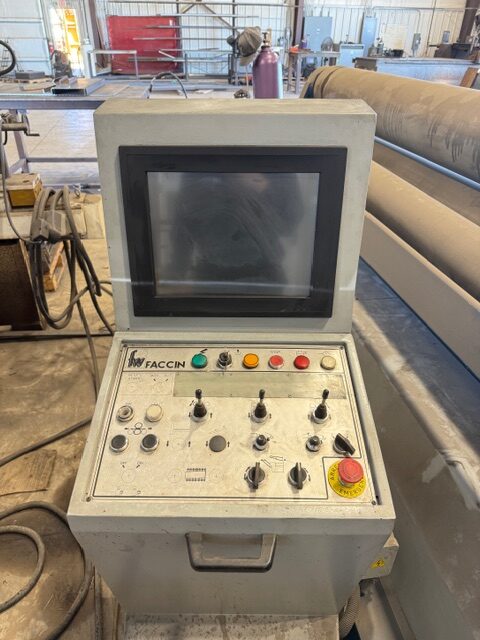

Central operator console with touch screen control & readouts

Cone bending attachment

Central lubrication system
